| US$3,000.00-5,000.00 | 1 Piece (MOQ) |

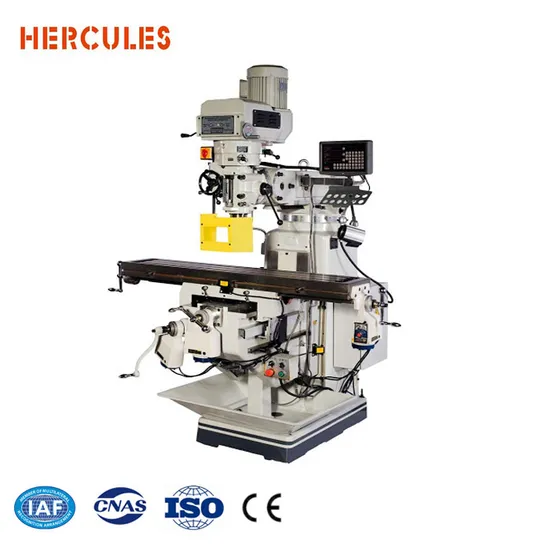

| Model | M2V | M3V | M4VA | M4VB | M5SV | M5V |
| Precision High Accuracy Series | ||||||
| Table size(L*W)(mm) | 1067x230 | 1270x254 | 1270x254 | 1270x254 | 1370x305 | 1370x305 |
| Max.load of table (kg) | 300 | 300 | 300 | 300 | 300 | 350 |
| X axis(mm) | 720 660 with power feed | 900 810 with power feed | 900 810 with power feed | 900 810 with power feed | 1000 910 with power feed | 900 780 with power feed |
| Y axis(mm) | 330 | 380 | 380 | 380 | 380 | 420 |
| Z axis (mm) | 360 | 360 | 360 | 360 | 360 | 360 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63.5 | 3-15.88x65 | 3-15.88x65 | 3-15.88x65 | 3-15.88x65 | 3-15.88x75 |
| Distance between spindle and table(mm) | 50-410 | 50-410 | 50-410 | 50-410 | 50-410 | 100-480 |
| Ram travel (mm) | 380 | 520 | 520 | 520 | 520 | 660 |
| Travel of spindle quill (mm) | 127 | 127 | 127 | 127 | 127 | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 70-3600rpm 10steps | 70-3600rpm 10steps |
| Spindle hole taper | R8 / NT30(optional) | R8 / NT30 (optional ) | R8 / NT30 (optional ) | R8 / NT30 (optional ) | NT40 | NT40 |
| Main Motor | 3HP | 3HP | 3HP | 3HP | 5HP | 5HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º | left and right±45º forward and backward±45º | left and right±45º forward and backward±45º | left and right±90º forward and backward±45º | left and right±45º | left and right±45º |
| Guiding tracks(X.Y.Z) | X/Y/Z all dovetail | X/Y/Z all dovetail | X/Z dovetail and Y square | X dovetail and Y/Z square | X dovetail and Y/Z square | X dovetail and Y/Z square |
| Dimension(L*W*H)(mm) | 1550x1500x2100 | 1750x1500x2100 | 1750x1650x2150 | 1750x1650x2150 | 1850x1650x2300 | 1850x1650x2300 |
| Milling head | Round step milling head | Round step milling head | Round step milling head | Round step milling head | Square head with side brake | Square head with side brake |
| Weight (kg) | 950 | 1200 | 1250 | 1300 | 1375 | 1450 |
| Optional milling head : Round step milling head ; Square head with side brake milling head ; Variable stepless milling head | ||||||
| M4VA X/Z axis Dovetail way,Y Square way | ||||||
| M4VB X axis Dovetail way, Y/Z Square way | ||||||
