Product Description
Product Description

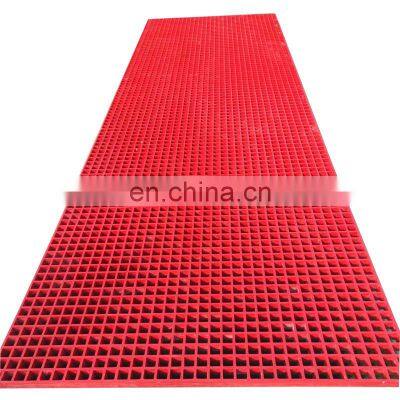

Product DetailsMolded Fiberglass Reinforced Plastic (FRP) Square Mesh Molded Grating Molded Square Mesh Grating Our most popular FRP product, molded square mesh grating is available in 1”, 1-1/2”, and 2” depths. The 1” and 1-1/2” deepproducts are produced with a 1-1/2” square mesh while the 2” deep products are produced with a 2” square mesh. The square pattern of the panels provides bi-directional strength and facilitates easy layout and fabrication.Micro-Mesh Molded GratingThe 1/2” square opening of Micro-Mesh molded FRP gratings is ADA conforming and makes them popular for applications in the public way. Available in 1” or 1-1/2” depths, Micro-Mesh has bi-directional strength which facilitates efficient layout and fabrication.Available in the full range of resins offered for molded products, Micro-Mesh surface options are concave meniscus, optionalsmooth (sanded) surface, or optional coarse or fine grit surfaces.Molded Rectangular Mesh Grating Available in 1” deep, 1” x 4” pattern, rectangular mesh FRP gratings are commonly used for walkways and trench applications. When selecting rectangular mesh grating it is important to specify the span (rectangular opening) of the grating perpendicular to thesupporting structure.All products are available with the concave meniscus surface or the optional grit surface (coarse or fine grit).Specification(mm)Panel size(mm)Weight(kg)Customize38*38*251220*366054 yes38*38*301220*36607038*38*381220*36601000*4007888150*50*501220*36609819*19*38*38*301075*36267238*38*651030*404014140*40*401010*40408119*19*38*38*381220*36609225*25*50*50*301220*366062Product Details Show Smooth surface of frp gratingFrp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength. Gritted surface of frp grating Good mechanical property Inflaming Retarding Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight. Concove surface of frp gratingFrp grating with concave surface can customized size Yellow, green, black, grey, transparent, etc .Customized color are available.Product DisplaysOur producing types of frp grating, from mesh size to panel size, and we can customized size of fiberglass grating according your requirement.Our factoryRelated productsContact usIf you are intersted in 38*38*30 heavy duty offshore grating floor GRP FRP walkway plastic grating, please feel free to contact us!
>>
