Netengine Ne20e Series Router Cr2m04basa01

Product Description

CR2M04BASA01
Model:
NetEngine NE20E Series Router CR2M04BASA01 Detail:
NE20E-S 4 AC Basic Configuration Includes NE20E-S 4 Chassis,1*MPUE,2*AC Power,Power cord,without Software Charge and Document Overview
NE20E-S 4 AC Basic Configuration Includes NE20E-S 4 Chassis,1*MPUE,2*AC Power,Power cord,without Software Charge and Document
Overview (CR2M04BASA01) The NE20E-S CR2M04BASA01 router can be flexibly deployed at the access and aggregation layer of IP/MPLS networks and work with other NE routers to provide an all-around network solution for enterprise users, satisfying diversified service requirements in the future. NetEngine series router CR2M04BASA01 includes following features:
1) 2 MPUE slots, 2 NSP slots, 8 PIC slots, 2 AC power supply
2) 3.97Tbps switching Capacity, 180Mpps forwarding performance
3) Interface type: 40GE, 10GE, GE/FE, OC-3C/STM-1c POS, OC-12c/STM-4c POS, Channelized OC-3/STM-1 POS, E1/CE1
4) IPv4/IPv6 routing protocol, L2/L3 VPN, Multicast, QoS
5) Security, Reliability, High availability, Flexibility

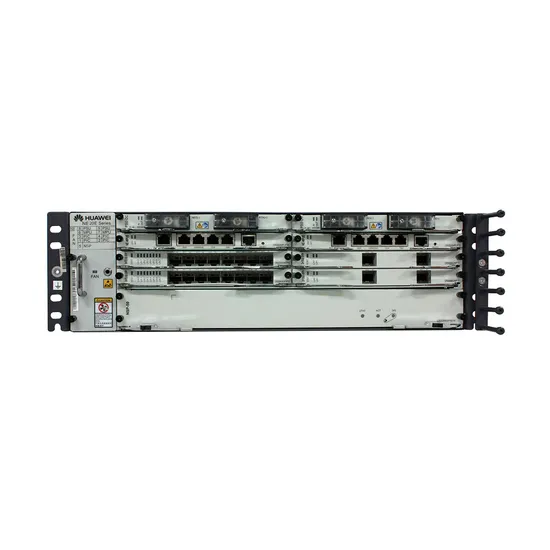

Quick Specs Figure 1 shows the appearance of Router - CR2M04BASA01.

Table 1 shows the Quick Specs.

Product Code	Router - CR2M04BASA01
Forwarding Capacity	480 Gbit/s
Forwarding Performance	180 Mpps
Fixed Ports	none
Number of Slots	2 MPUs 1 NSP 4 PICs
Power Consumption (in full configuration)	456W (AC)
Weight	18.1 kg (AC)
Dimensions (W x D x H)	175 mm x 442 mm x 220 mm (AC, 4U)

Compare to Similar Items Table 3 shows the comparison between CR2M04BASA01 and CR2P2EBASD10.

Model	CR2M04BASA01	CR2P2EBASD10
Forwarding Capacity	480 Gbit/s	160 Gbit/s
Forwarding Performance	180 Mpps	70 Mpps
Fixed Ports	none	2 x 10 GE(SFP+) and 24 x GE (SFP)
Number of Slots	2 MPUs 1 NSP 4 PICs	2 PICs
Power Consumption (in full configuration)	456W (AC)	195W (DC)
Weight	18.1 kg (AC)	9.3 kg (DC)
Dimensions (W x D x H)	175 mm x 442 mm x 220 mm (AC, 4U)	89 mm x 442 mm x 220 mm (2U)
