Automatic Paper Screen Printing Machine

Product Description

Automatic Paper Screen Printing Machine

Machine Description:
The Automatic Screen Printing Machine is designed to print on film material in roll, such as PET, PVC, PE, PV, PP film.
This Automatic Screen Printing Machine is composed of a feeder, a printing unit and a hot air dryer.
The feeder has dust removal rollers, it is able to alarm when the roll material run out.
The printing unit table has vaccum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.
The hot air dryer has 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being dried.
High level of automation, only one people can operator the the whole printing line.
High printing accuracy, multi color overprint can be done on the machine.
High productivity, production capacity equal to six sets of semi-automatic screen printing machine.
Application: RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.
Machine Parameters:

Model			LTA-3040		LTA-5060		LTA-6080
Max. Printing Size			300x400mm		500x600mm		600x800mm
Printing Speed			0~5000 print/hr.		0~2500 print/hr.		0~2500 print/hr.
Max. Screen Frame Size			600x800mm		800x1000mm		900x1200mm
Frame Adjusting Variable			60mm		60mm		60mm
Max. Substrate Width			320mm		520mm		620mm
Registration Accuracy			±0.01mm		±0.01mm		±0.01mm
Air Source			0.4~0.6mpa		0.4~0.6mpa		0.4~0.6mpa
Power			220V, 3KW, 15A		220V, 3KW, 15A		220V, 3KW, 15A
Printing Material Thickness			0.02~0.5mm		0.02~0.5mm		0.02~0.5mm
Weight			600kgs		700kgs		950kgs
Overall Dimensions (L*W*H)			7000x1100x1900mm		8200x1200x2000mm		9000x1350x2200mm

Machine Photos:

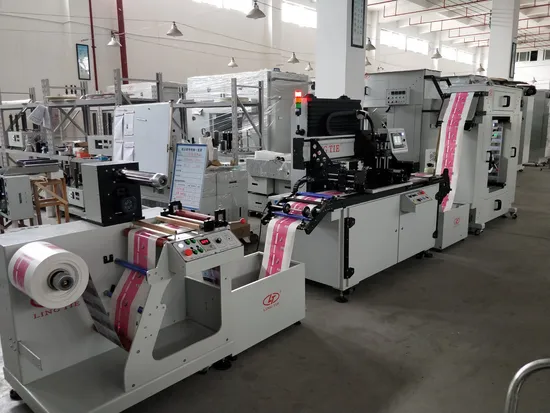

Automatic Screen Printing Machine includes a feeder, a screen printing unit and a hot air dryer.
Vacuum table: fix the PET film during printing process. Automatic register system for screen alignment.
feeder: dust removing, protect film removing, electrostatic eliminating,etc.
inspection station: Timely inspection of printing quality to avoid waste.
Print Head: Good stability, ensure long time use of the machine.
Rewinding Shaft: After printing, through the tunnel oven drying, automatic rewinding at last.
Printed Samples:
enterprise honor:
Workshop:
Exhibition:
Our Team and Customers:
Machine Package:
Automatic Screen Printing Machine is packed in wooden box for delivery by container.

---
