Wood Pallet Block Making Machine for Wood Sawdust

Product Description

Product Description

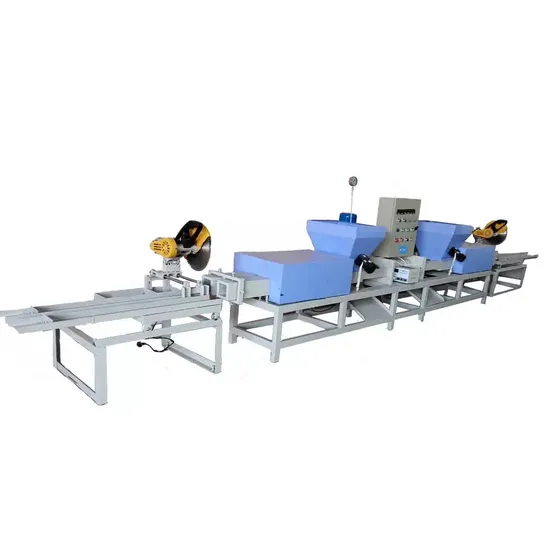

Wood Pallet Block Making Machine

Model	Double Head WBM-2	Four Head WBM-4	Six head WBM-6
Size(mm)	4800*500*1420	4800*580*1420	4900*940*1420
Capacity	2-3m3/24h	4-6m3/24h	6-8m3/24h
Glue water amount	100-120kg/m3	100-120kg/m3	100-120kg/m3
Density	550-600kg/m3	550-600kg/m3	550-600kg/m3
Power	12kw	16-18kw	24kw
Weight	1000kg	1500kg	2200Kg
Various sizes can be customized: 75*75MM, 80*100MM, 80*120MM, 90*90MM, 90*140MM, 100*100MM, 100*115MM, 100*140MM, 140*140MM,

Production Line

Related Products
Plywood Foot Pier Cutting Machine

Model	PB200
Working mode	Automatic feeding ,automatic nailing and cutting
Operating mode	Touch screen control
Operational mode	Pneumatic operation
Motor power	7.5KW,2.2KW*2,1KW
Raw material length	1000-3000mm
Block Length	40-200mm
Cutting height	40-120mm
Cutting width	40-100mm
Cutting blade	350-400mm
Number of planer	2
Nail quantity	1-3 pcs (adjustable)
Working Efficiency	5-6m3/day
Voltage	380V/3 Phase
Weight	1200Kg
Dimension	5400*1400*1600mm

Why Choose Us
Company Profile
Established in 1988, Sawmill-World is a professional manufacture that does its own research and development. We specialize in woodworking machinery like band saws, pallet machines, wood crushers,etc.. With over 50 employees and covering an area of 1400 square meters. Over the past 30 years, we have exported to over 70 countries including America, Mexico, Canada,India, Australia and many others. All machines in our factory have CE and ISO, and we can customize any machine certificate according to your needs. Most importantly, we can provide machine customization services and provide you with a complete product production line for one-stop procurement, with rich sales and export experience.
Certifications
Our Customers
Packaging & Shipping

---
