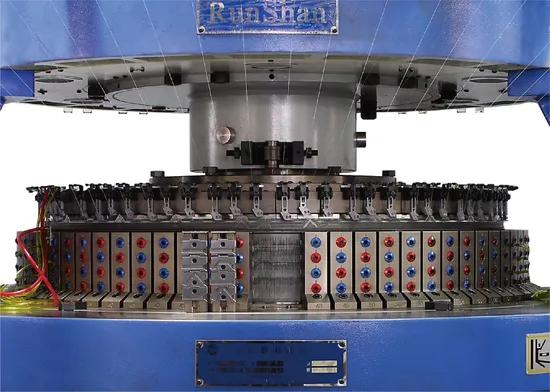

Double Jersey Interlock Knitting Machine

Product Description

Type:
This is a fine high speed double jersey interlock knitting machine.
Features:
It has all the features of double jersey knitting mathine.
Convertable to double jersey rib knitting machine.
The heart parts of the machine.
General: Double jersey machine capable to knit interlock structures, with or without Elastane 2.4 feeders per diameter inch, high fabric output Possibility to convert the machine for the production of rib Optional central stitch length adjustment, fast adjustment of fabric weight / style
Frame: Standard frame for 500 mm fabric rolls High frame leg for bigger fabric rolls optional Standard Chinese brand oiler and inverter Memminger oiler optional Toshiba inverter optional
Needles: Groz needles Stardard 2 needle tracks in the cylindere and 2 needle tracks in the dial Up to 4 types of cylinder needles
Cam parts: Standard steel cam box Aluminum cam box optional, for great heat dissipation property and light weight Exchange cam for 3 positions in KNIT-TUCK-MISS Individual stitch length adjustment
Yarn feeding: Side yarn creel with pipe MPF, give positive feed to the machine Standard Elastane feeder for all feeds Memminger yarn feeder optionla Ceramic yarn carriers, reduce wear and tear Product Parameters
Technical data:

Machine Type	Double Jersey
Function Device	Regular
Cylinder Diameter	14" ~ 42"
Machine Gauge	12G ~ 38G
Feeders	20F ~ 108F

Product Application

Structures:
This machine can knit a wide variety of double jersey structures, such as rib, interlock, rome, eyeltet, pique, air layer, air mesh etc.
Application:
Applied in multiple fields such as sports & leisure, underwear, outerwear, mattress etc.
Our Advantages
High Manufacturing Capacity:
Annual production of 1500 ~ 2000 circular knitting machines and related accessories.
High Quality:
We have our own product research and development center, and equipped with various advanced CNC processing equipment from Germany, Japan and other places, all the core machine components are processed under CAD/CAM to ensure the product quality.
Competitive Price:
Most of the machine components are made by ourself, and have lower cost compare to purchase components from other factories.
Quality Service:
Our professional team provides pre-sales and after-sales services such as product consultation, technical guidance, installation services, and operation training.
Production Equipment

Core Component Processing

---
