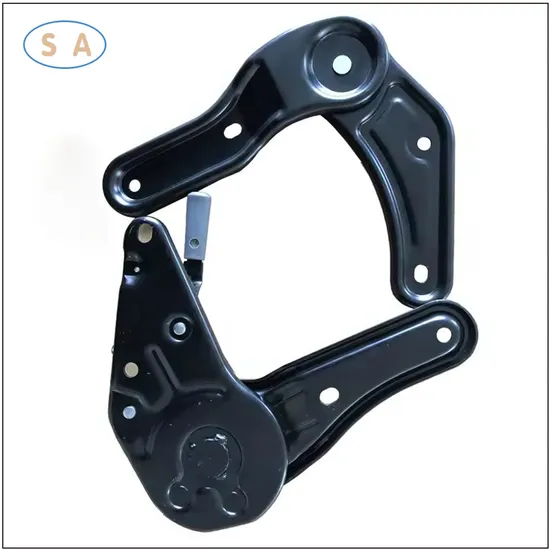

OEM Vehicle Seat Angle Adjustment Parts Recliner Angle Adjuster for Car Seat

Product Description

OEM Vehicle Seat Angle Adjustment Parts Recliner Adjuster for Car Seat
We can offer a lot of bus driver seats include: Driver seat assembly with two point safety belts, Driver seat assembly with blue wave pattern composite knitted fabric, Driver seat assembly No damping upper slide, Mechanical glide path driver seat assembly, Driver seat assembly Left adjusted driver seat two-point belts, Driver seat with damping double slide base frame and their parts.

Model No.	Product Name	Installation Dimension	Adjustable Scope for Angle	Application	Weight (Kg)
		Seat*Backrest (mm)			single
WH-T206	recliner		Forward 45°±2° backward 78°±2°	All kinds of Mobile Machinery Shops, Racing Cars, Agricultural Vehicles
					1.13
	recliner	105*80			1.14
	supporter	50*80			1.11
	supporter	100*80			0.43
					0.33

Product Parameters

Product Category	Manual Recliner
Type of Key Component	Fan-shaped Toothed Plate,Circled Toothed Plate
Model No.	JF-A16
Adjustable range	30-180degree
Material	Steel 45#
Installation size	mounting hole 90×100mm or 85*110mm
Accuracy of Adjustment	2.8°
Adjustable Range of Handle	30°
Unlatch force of Handle	34N~50N
Single Side/Both Side	Both Side
The hardness of the teeth	38degree-42degree
Net weight/gross weight	1.8kg/2.2kg
Carton size	30*30*5cm
Application	Greet for RV,caravan ,and motorhomes

Technical Requirements: 1. The rotation of the corner device is flexible, like the sound of sound and other bad phenomena; 2. The handle operating force is 50~ 70N, and the horizontal clearance of the handle is less than
4mm (tail of the handle); 3. The rotary center 200mm, applying 96N force, the clearance of the adjusting Angle is less than
1.2mm; 4. Illustrates rotation Angle, initial position backward 78 °; 5. The other strength of the modulator should meet the requirements of GB15083. 6. In addition to the electroplating and blue parts, the appearance of each of the parts is black
spray, with no apparent defects.
Quality control In order to ensure the quality of the orders,our independent QC members to carry out strict inspection at
each stage:
(1)Incoming material inspection
(2)Inspection of work-in-progress
(3)Finished product inspection
(4)Random warehouse inspections
All of our operations are strictly compliant with ISO 9001: 2015 guidelines We own automated casting lines, CNC machining, CMM inspection, spectrometers and MT testing equipment, X-ray. To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients.
Quality control:
*We have specialized QC testers to check the quality of the products according to different customers' requirement. Usually, it's random inspection, and we also offer 100% inspection at a reasonable price if required.
*We have IQC to check the dimensions and surface of the incoming material
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons. we can also pack it as your requirement.
Q2. What is your terms of delivery?
A: EXW,FOB or CIF according to the different conditon.
Q3. How about your delivery time?
A: Generally, it will take 1 to 50 days after receiving your payment, we always has goods in rich
stock,but specific delivery time depends on the items and the quantity of your order.
Q4. What is your terms of payment?
A: As for the big amount,T/T 50% as deposit, and 50% before delivery. We'll show you the photos
of the products and packages before you pay the balance.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay
the sample cost and the courier cost.
If there's anything I can help, please feel free to contact with me.

---
