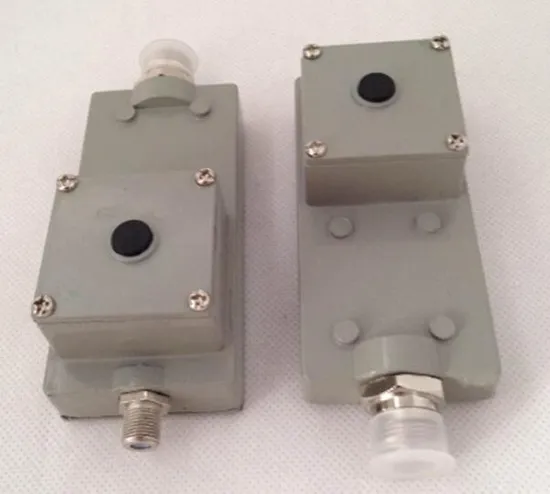

Factory Supply High Gain Use in Project S Band LNB with Lo Fequency 3650, 3750, 3850, 3950MHz

Product Description

Special S band LNB with L.O3750Mhz for project use
S band project lnb
1.high gain low noise
2.high quality low price
3.signal stability
4.certifited manufacturer
S Band LNB for project use.Lo Can make to 3650/3750/3850/3950Mhz.(can choose)
S-LNB SPECIFICATIONS:

Input Frequency	2.3 to 2.7GHz, 2.2 to2.7Ghz,2.3 to 2.9GHz, 2.5 to 2.9GHz
L.O. Frequency	3650,3750,3850,3950MHz
Output Frequency	950 to 1350 MHz, 1050 to 1550 MHz, 1050 to 1650 MHz
L.O. Stability	±1.5MHz(-40°Cto+70/25°C)
Noise Figure	0.4dB
Conversion Gain	55dB
Intput VSWR	2.0:1
Output VSWR	2.0:1
Output Connector	F-female Connector
Output Impedance	75hms
Image Rejection	45 dB
Phase Noise	-95dBc/Hz@100kHz(max), 75dBc/Hz@10kHz(max)
Supply Voltage	12v-24v
