Manufacturer Good Quality Carbide Corner Radius Milling Cutters

Product Description

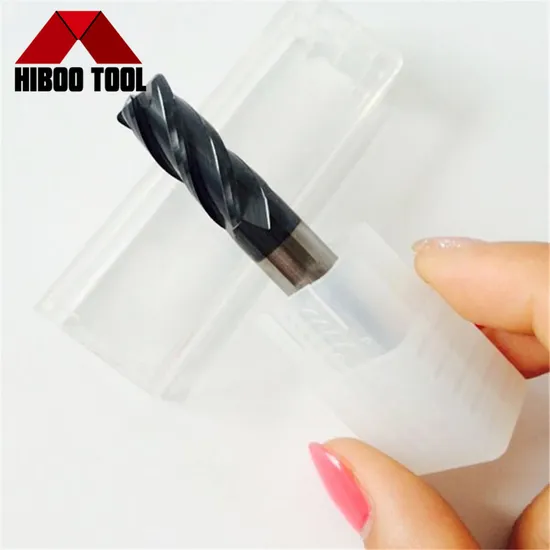

Tungsten Carbide CNC Corner Radius End Mill
1. Super Fine HRC55 carbide rod:

HRC55

YG10X

Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2

2. Made by world latest 5-AXIS CNC tools grinder, promise the quality and precision of cutter.
3. Super Black Nano Coating reduce the coeffiction of friction, and improve the tools life much.

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Black

4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement.
6. Work Piece: Suitable for processing steel, stainless steel, nickel alloy, Titanium alloy, cast iron,
Plastic and other materials' hardness below HRC45

order number	cutting	Flute	Shank	Corner	A.0.L
	d	l	D	R Corner	L
1×3×4D×R0.2×50L×4F	1	3	4	R0.2	50
1×3×4D×R0.3×50L×4F	1	3	4	R0.3	50
1.5×3×4D×R0.2×50L×4F	1.5	4	4	R0.2	50
1.5×3×4D×R0.3×50L×4F	1.5	4	4	R0.3	50
2×6×4D×R0.2×50L×4F	2	6	4	R0.2	50
2×6×4D×R0.3×50L×4F	2	6	4	R0.3	50
2.5×8×4D×R0.2×50L×4F	2.5	6	4	R0.2	50
2.5×8×4D×R0.5×50L×4F	2.5	6	4	R0.5	50
3×8×3D×R0.3×50L×4F	3	8	3	R0.3	50
3×8×3D×R0.5×50L×4F	3	8	3	R0.5	50
3×8×4D×R0.3×50L×4F	3	8	4	R0.3	50
3×8×4D×R0.5×50L×4F	3	8	4	R0.5	50
4×10×4D×R0.5×50L×4F	4	10	4	R0.5	50
4×10×4D×R1.0×50L×4F	4	10	4	R1.0	50
4×10×6D×R0.5×50L×4F	4	10	6	R0.5	50
4×10×6D×R1.0×50L×4F	4	10	6	R1.0	50
5×13×6D×R0.5×50L×4F	5	13	6	R0.5	50
5×13×6D×R1.0×50L×4F	5	13	6	R1.0	50
6×15×6D×R0.5×50L×4F	6	15	6	R0.5	50
6×15×6D×R1.0×50L×4F	6	15	6	R1.0	50
8×20×8D×R0.5×60L×4F	8	20	8	R0.5	60
8×20×8D×R1.0×60L×4F	8	20	8	R1.0	60
8×20×8D×R1.5×60L×4F	8	20	8	R1.5	60
10×25×10D×R0.5×75L×4F	10	25	10	R0.5	75
10×25×10D×R1.0×75L×4F	10	25	10	R1.0	75
10×25×10D×R1.5×75L×4F	10	25	10	R1.5	75
10×25×10D×R2.0×75L×4F	10	25	10	R2.0	75
12×30×12D×R0.5×75L×4F	12	30	12	R0.5	75
12×30×12D×R1.0×75L×4F	12	30	12	R1.0	75
12×30×12D×R1.5×75L×4F	12	30	12	R1.5	75
12×30×12D×R2.0×75L×4F	12	30	12	R2.0	75
3×8×3D×R0.3×75L×4F	3	8	3	R0.3	75
3×8×3D×R0.5×75L×4F	3	8	3	R0.5	75
3×8×4D×R0.5×75L×4F	3	8	4	R0.5	75
3×8×4D×R1.0×75L×4F	3	8	4	R1.0	75
4×10×4D×R0.5×75L×4F	4	10	4	R0.5	75
4×10×4D×R1.0×75L×4F	4	10	4	R1.0	75
4×10×6D×R0.5×75L×4F	4	10	6	R0.5	75
4×10×6D×R1.0×75L×4F	4	10	6	R1.0	75
5×13×6D×R0.5×75L×4F	5	13	6	R0.5	75
5×13×6D×R1.0×75L×4F	5	13	6	R1.0	75
6×15×6D×R0.5×75L×4F	6	15	6	R0.5	75
6×15×6D×R1.0×75L×4F	6	15	6	R1.0	75
8×20×8D×R0.5×100L×4F	8	20	8	R0.5	100
8×20×8D×R1.0×100L×4F	8	20	8	R1.0	100
8×20×8D×R1.5×100L×4F	8	20	8	R1.5	100
10×25×10D×R0.5×100L×4F	10	25	10	R0.5	100
10×25×10D×R1.0×100L×4F	10	25	10	R1.0	100
10×25×10D×R1.5×100L×4F	10	25	10	R1.5	100
10×25×10D×R2.0×100L×4F	10	25	10	R2.0	100
12×30×12D×R0.5×100L×4F	12	30	12	R0.5	100
12×30×12D×R1.0×100L×4F	12	30	12	R1.0	100
12×30×12D×R1.5×100L×4F	12	30	12	R1.5	100
12×30×12D×R2.0×100L×4F	12	30	12	R2.0	100

7.Hiboo Shipping and delivery
For samples , we dispatch your tools in 7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
8.Why Choose Hiboo Tools
several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest

---
