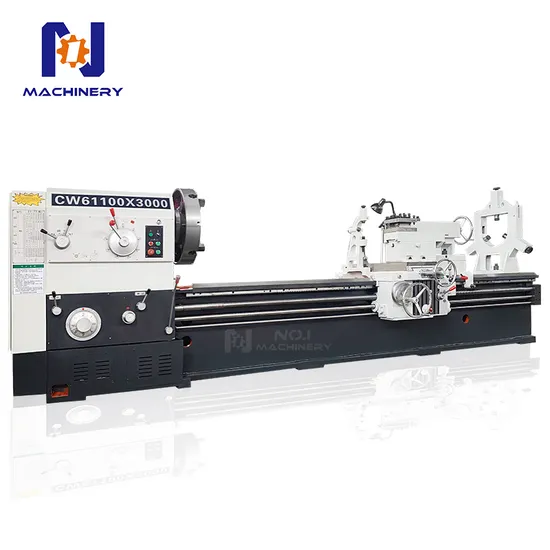

Cw61100 Heavy Duty Turning Lathe Machine, 1000mm Swing Over Bed, Universal Horizontal Lathe for Precision Metalworking

Product Description

Product Description

The CW Series Heavy-Duty Lathe stands out for its robust design and precision capabilities. Key features include:
Heavy-Duty Construction: Built with high-quality cast iron, it ensures rigidity and stability, minimizing vibrations for precise machining.
High Power and Torque: Equipped with a powerful motor, it handles heavy workpieces and deep cuts effortlessly.
Large Swing Over Bed: Accommodates oversized components, making it ideal for industries like aerospace and energy.
Advanced Control System: Offers user-friendly CNC or manual controls, ensuring flexibility and ease of operation.
Precision and Reliability: High-precision spindle bearings and a rigid bed design deliver superior accuracy and consistent performance.
Product Parameters

Model		Unit	CW61100	CW61100
Maximum rotation diameter on the bed		mm	1000	1000
Rotation diameter on the tool holder		mm	720	680
Maximum workpiece length		mm	1500/2000/3000	1500/2000/3000
Spindle through hole diameter		mm	105	105
Spindle front end taper hole diameter and center taper		mm	120,1:20	120,MT6
Spindle speed series and range		r/min	7.5-1000 (18kinds)	18,5.4-720
Vertical feed level and range	Range 1:1	mm/r	0.06-1.52(64kinds)	0.06-1.52(64kinds)
	Range 16:1	mm/r	1.6-24.3(64kinds)	1.6-24.3(64kinds)
Micro feed range with exchange gear		mm/r	0.06-0.912	0.06-0.912
Ratio of lateral feed to longitudinal feed		-	1/2	1/2
Machine tool lead screw pitch		mm	12	12
Thread type and range	Metric thread	mm	1-240 (50kinds)	1-240 (50kinds)
	British thread	tpi	14-1 (26kinds)	14-1 (26kinds)
	Module thread	mm	0.5-120 (53kinds)	0.5-120 (53kinds)
	Diameter pitch thread	tpi	28-1 (24kinds)	28-1 (24kinds)
Maximum horizontal stroke of lower tool rest		mm	420	390
Maximum stroke of upper tool rest		mm	200	200
Stroke of end sleeve		mm	250	250
Tip of end sleeve		-	MT6	MT6
Width and quenching hardness of bed rail		mm	550mm RC52	600mm RC52
Hardness of bed rail		RC	52	52
Main motor power		kW	11	11
Fast motor power		kW	1.1	1.1
Cooling pump motor power		kW	0.9	0.9
Lathe weight		kg	3800/4200/5000	4500/4700/5500
Machine outline dimensions (length × width × height)		mm	3600/4100/5100*1530*1870	3600/4200/5200*1500*1700

Detailed Photos
MANUAL CHUCK
The standard version is equipped with a 3-jaw or 4-jaw manual chuck. Customers can choose chucks of different sizes according to their requirements. A hydraulic chuck
FOUR-STATION TOOL HOLDER
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
QUENCHED TAILSTOCK
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
STEADY REST
Steady rest are optional accessories, need extra cost.
Packaging & Shipping
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
