Product Details
Product Description
Product Description

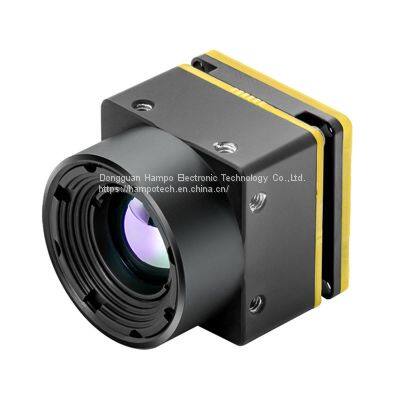

Thermal image camera module
Product Description
HAMPO-Mini256 thermal image camera module adopts new self-developed 12μm VOx WLP detector and is equipped with an ASIC processing chip independently developed by InfiRay®, featuring extremely small size, lighter weight, and lower power consumption. Its 640-resolution thermal iamging module has a size of 21mm×21mm, which is very suitable for applications with extremely high requirements such as various miniaturized handheld devices, wearable devices, and light UAVs.
Specification
item
| value
|
Place of Origin
| China
|
Model
| Mini256
|
High Definition Support
| 256*192
|
Additional Function
| Recording Function, Camera Function, Nightshot
|
Imaging Sensor
| CMOS
|
Detector Frame Reta
| 50Hz/25Hz
|
Size
| 21*21mm
|
Digital Video
| Dvp
|
Resolution
| 256*192
|
Spectral Band
| 8-14μm
|
Detector
| Wlp Uncooled Vox Infrared Focal Plane Detector
|
Weight
| Less Than 8g
|
Key FeaturesExtremely small size, extremely low power consumption, and extremely light weight
Benefit from the size advantages of ASIC and WLP;
Benefit from the low power consumption of ASIC;
Mini series thermal imaging module has only one circuit board, which is extremely light.
Self-developed Core
With advanced image detection algorithm, it can realize automatic checking alarm, warning area customizing, and automatic target recognizing or tracking; The interface software has complete functions and friendly interaction. It provides a variety of checking methods such as 360° panoramic image, radar image, and single frame image, and various parameters of the device can be set; When the capture target appears, it can alarm via image slice, log, sound, and other methods;
Advanced image detection algorithm
The alarm position can be accurately displayed in real time on the infrared panoramic image and 2D/3D electronic map of GIS system, and link with other external devices. For example, combined with the ARD high-accuracy remote dual-spectrum early-warning imaging tracker, it can quickly locate and recognize the target, complete the alarm situation review process, and record the linkage process information;
Advanced image stabilization algorithm
Small size, customized color, easy to install and deploy in various environments;
30V DC power supply, average power of less than 30w. The ordinary portable power source is enough for it;
A single person can complete its handling, installing, and debugging in half an hour. Main components: 1 tripod + 1 portable power supply + 1 laptop;
