| Negotiable | 1 Piece (MOQ) |

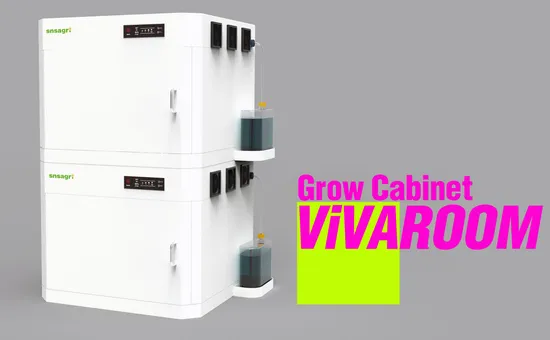

| Grow cabinet for high-added value plants | Specifications | ||||
| Model# | TPGC-X | TPGC-2X | TPGC-LX | ||
| Type | Cabinet floor | 1-floor | 2-floor | king-sized | |
| Features | Semi-enclosed growth space for Herbs, Lianas and Woods Completely isolated growth space, no concerns for negative interferences from the nature 400~600W LED growing lights with selected spectrum and dimmable brightness/colors for different plants Adaptive Growth Control with auto/manually adjustable environmental elements in Air/Water/substrate Supporting Online remote control / AI driven adaptive auto operation / Offline manual control Growing log available for tracking back all the growing period High efficiency delivers continueous harvest DIY-building, all modulized parts and modulized configuration | ||||
| Eco control | Max input | Specifications | 220V/100A | 220V/200A | 220V/250A |
| Air conditioner (optional) | see corresponding spec | 220V/15A | 220V/15A | 220V/15A | |
| LED grow light | 15~100% dimmable | 400Wx1 | 400Wx2 | 600Wx1 | |
| Photometer | 0~10000 lux | 1 | 2 | 1 | |
| Ventilator | see corresponding spec | 3 | 6 | 6 | |
| Irrigator | see corresponding spec | 9 | 18 | 9 | |
| Spreyer | see corresponding spec | 9 max | 18 max | 9 max | |
| Ambient temp/RH sensor | -10~40C/0~100% | 1 | 2 | 2 | |
| Soil/Substrate temp/RH sensor | -10~40C/0~100% | 1 | 2 | 2 | |
| CO2 concentration sensor | 0~ 30ppm | 1 | 2 | 2 | |
| CO2 generator | see corresponding spec | 1 | 2 | 1 | |
| EC/pH sensor | see corresponding spec | 1 | 2 | 1 | |
| Air pressure meter | see corresponding spec | 1 | 2 | 1 | |
| VPD monitor | Integrated | 1 | 2 | 1 | |
| Spectrum/Shape identifier Webcam | Multiple functions | 1 | 2 | 2 | |
| Extension port | Optional | 220V/10A x3 | 220V/10A x6 | 220V/10A x6 | |
| Connect / UI | Terminal App | √ | Windows / Android / iOS | ||
| Full color LCD | √ | 1 | 2 | 1 | |
| Internet | √ | 4G / 5G / WIFI / LAN | |||
| Bluetooth | √ | Supporting local connection with smart terminals | |||
| DAERS support | √ | Online remote control / AI driven adaptive auto operation / Offline manual control | |||
| Mechanical | Outer dimension LxWxH /mm³ | 1200x1200x85 | 1200x1200x170 | 1200x1200x170 | |
| Space for growing LxWxH /mm³ | 1000x1000x60 | 1000x1000x60x2 | 1000x1000x145 | ||
| Bracket dimension φxL | |||||
| Floor-to-floor height /mm | 60 | 60x2 | 145 | ||
| Floor | 1 | 2 | 1 | ||
| Top load bearing /kg | 15 | 15 | 15 | ||
| Middle load bearing /kg | - | 40 | - | ||
| Bottom load bearing /kg | 60 | 60 | 60 | ||
| Net Weight /kg | 25 | 50 | 50 | ||
| Gross Weight /kg | 30 | 55 | 55 | ||
| Material | Bracket | Aluminum extrusion | |||
| Joint | Diecast | ||||
| Cover | Outside diecast, inside aluminum reflection film | ||||
| Top | Diecast | ||||
| Middle panel | Diecast | ||||
| Bottom | Diecast | ||||
| Housing | Diecast or nonwoven | ||||
| Environmental | Working temperature range | -10~40ºC | |||
| Humidity range | 0~100% | ||||
| Supply/Drainage flow | ml/s | ||||
| Suitable for | No floor | Lettuce | Orchid | Tomato | |
| Safety and Regulation | to be certified by CE / UL / TUV | ||||
