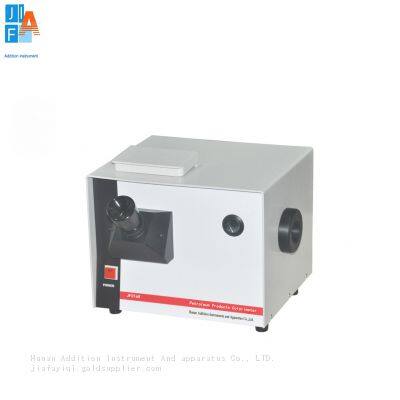

Petroleum Products Colorimeter
Product Model: JF0168
Product Introduction
This instrument is suitable for various petroleum products such as lubricating oil, kerosene and diesel oil.
Working principle: inject the sample into the colorimetric tube, and then compare it with the standard glass color chip, and use its equivalent color number to act on the chromaticity of the sample.
Technical Parameter
1. Applicable standards: ASTM D1500, SH/T0168, GB/T6540
2. Colorimetric tube: Inner diameter: Ф32mm,
Height: 120mm-130mm
3. Glass sheet: No. 1-25 (No. 0.5-8.0 of GB/T6540 standard)
4. Working power supply: AC220,240V/50,60Hz
5. Color disc aperture: 26
6. Power of the whole machine: 500W
7. Instrument size: 240*210*200mm
8. Net weight: 4KG
9. HS Code: 9027509090
Main Feature
1. The instrument consists of a standard color wheel, an observation optical lens, a light source, and a colorimetric tube.
2. The light source is 220V, 100W, and the inner frosted milk shell bulb is the standard light source. After the light source is filtered by the milky white glass and the sunlight filter glass, the spectral characteristics of the obtained standard light are similar to this light.
3. The standard light passes through the plane reflector, and the prism forms two parallel beams, the size and shape of which are exactly the same, which can be uniformly irradiated on the sample of the colorimetric tube on the color glass sheet of the standard color disc at the same time.
4. There are 26 Φ14 light holes on the standard color wheel.
5. The hand wheel installed on the right side of the instrument is rotated by the color wheel, so that the correct equivalent color can be selected during the colorimetric test.
6. The standard color glass color on the color wheel should be calibrated with the colorimetric solution used as the calibration standard color.
7. The colorimetric tube is a colorless flat-bottom glass tube with an inner diameter of Φ32 mm and a height of 120-130 mm.
The observation eyepiece is composed of a concave mirror and a dividing grid. Two semicircular colors can be seen in the eyepiece at the same time, and the left one is the color of the sample. The one on the right is the standard color, and the optical eyepiece has the ability to adjust light and focus, making it easy to use.
Q: What services are supported?
A: Free lifetime online technical services are supported.
2.Q: How long is the warranty period of the equipment sold?
A: The warranty is for twelve months
3.Q: How long is the delivery time?
A: Within 3 working days after receiving the down payment for the products in stock, and the specific delivery time depends on the order quantity and products.
4.Q: What is the minimum order quantity?
A: For the equipment, the minimum order quantity will be 1 set. For the lab parts, please contact us for final confirmation.
5.Q: What’s your transportation?
A: Express, air, sea transportation are supported, and appointed forwarders are also supported.
6.Q: Do you accept customization service? Can I have my logo on the machine?
A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
7.Q: How to install and use the product?
A: Operating instructions or video will be sent to you online or by email. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use.
8.Q: What’s the trade term and delivery term?
A: Most of the common trade terms are supported, like CIF, FOB, CFR and so on . We have ordinary instruments in stock, the delivery time is 1-7 working days. If there are not in stock, the delivery time is 15-30 working days after the down payment. If you are in urgent, we can consider making a special arrangement for you.
>>
