Mrl 800kg Passenger Elevator From Chinese Manufacturer

Product Description

Company Profile
ABOUT US
IFE Elevators Co.,Ltd was established in September 1998 in China which is specializing in elevator and escalator industry. Through over 20 years'development, IFE is becoming an experienced leader not only in supplying remarkable equipment ,
but also provides complete solutions and vertical services for modemization,transportation and after-sale service in the world. We pride ourselves as an innovative private owned elevator service company.


Product Description

JOYMORE-7A Machine Room less Passenger Elevator
a kind of medium to high end customized machine roomless elevator. It takes the space as the leading, customizes diversified solutions, perfectly combines the practiality andaesthetics of the space, and creates a pleasant experience when taking elevators.

In addition, it greatly reduces the space occupied by the shaft and uses a simple, safe and efficient installation method to save civil engineering and installation , bringing more commercial value to the building.

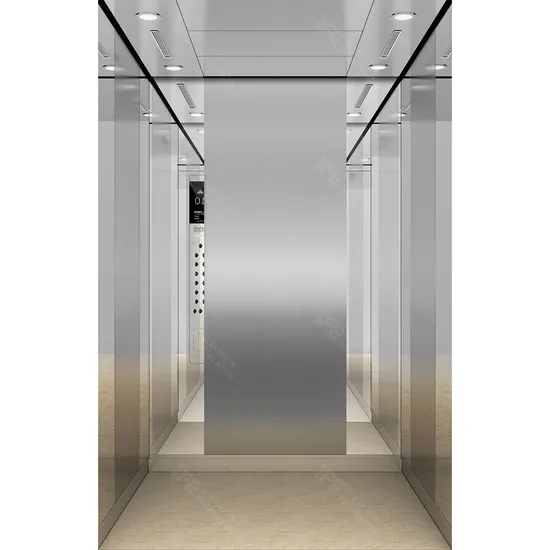

Detailed Photos

Product Parameters

Specification		JOYMORE-7A
Capacity (kg)		800KG
Speed (m/s)		1.0M/S
Operation System		full collective selection operation
Driving System		VVVF
Door Operator System		VVVF
Traction Machine		Permanent Magnet Synchronous Gearless type
Control System		CTRL 71
Parallel Elevators		2 units
Group Control Elevators		3-8 units
Car Dimension mm width*depth		1350x1400*2500
Miniumum overhead(mm)		4200
Miniumum pit depth (mm)		1250
Miniumum shaft size (mm)		2000*2000

After Sales Service
1.Provide 12 Months warranty since B/L date
2.provide local installation and maintainence service

Certificates
FAQ
1.How To Choose The Capacity Of Your Passenger Elevators?
When selecting and configuring elevators, you should carefully understand the building's own situation and use environment, including the building's use, scale, height, passenger and cargo; flow, etc.
2.How long is the warranty period?
The standard is at least 12 months, you can consult the salesman about extending the warranty;
3.How long is the fastest delivery time?
According to the actual situation of the project, it may be different, and the fastest standard is within 25 DAYS
4.What is the approximate price?
The price of the elevator is determined by a variety of circumstances, including floor height, car size, elevator speed, etc. Please consult relevant business personnel.
5.Do you have elevator qualification, CE certificate?
SS550(Singapore standard), EN81 ( European standard) , AS1735(Australian standard),GOST(CIS standard).
6.How about your price and quality in the industry?
We have been NO.1 elevator exporter in China among Chinese national elevator brands, and our products are servicing more than 40 countries. We have the biggest market share in Singapore, more than 10000 units.
7.Can you provide installation and mainteance service ?
We have English-speaking sales engineers, if you want such kind of support, we can give you 24/7 technical support.
We have many commissioning engineers traveling around the world, so they can give local commissioning support if you need.

---
