US$13,000.00-18,000.00
|
2 Pieces
(MOQ)
|
Basic Info.
Application
Rice, Corn, Wheat, Soybean, Straw, Paddy
Drive Type
Hydraulic Transmission
Portable Harvester Type
Self-Propelled Rubber Track Full Feed
Certification
ISO9001:2008
Application Field
Agriculture
Rated Power
61 / 75 / 88 HP
Cutting Width
2000 mm (2200 mm Optional)
Fuel Consumption
18-28 Kg/Ha
Min Ground Clearance
310 mm
Transport Package
Complete in Container
Specification
4680mm*2300mm*2650mm
Production Capacity
10000 Pieces/Year
Product Description
Product Description

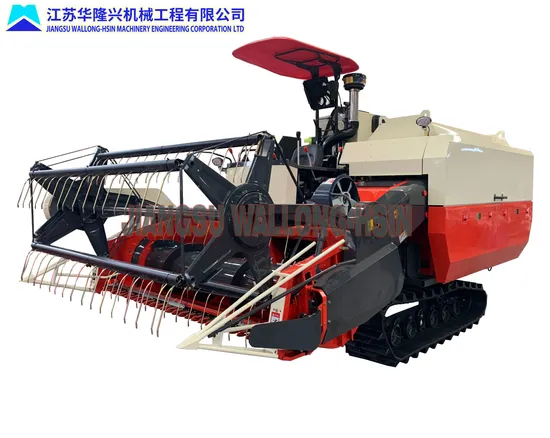

CAG-100+ is new generation of full-feed combine harvester with the characteristics of comfortable driving, low noise, high reliability, excellent operating performance, and strong paddy field passing ability.
The threshing system is Spiked Tooth Axial Flow. The combine harvester is mainly used for the harvesting of rice and wheat. With optional accessories, it can also be used to harvest soybean and maize.
The horse power of diesel engine: 88hp / 100hp / 110hp; cutting width: 2000mm / 2200mm; Hydrostatic Transmission(HST); The width of rubber track: 450mm / 500mm / 550mm; Top swing type discharging pipe; AC Cabin is optional.
Detailed Photos
Product Parameters
Model
| CAG-100+
|
Type
| Crawler Self-propelled Full-feed
|
Engine
| Type
| Water-cooled, 4stroke, Direct Injection, Turbocharged Vertical Diesel
|
Rated Power(kw/ps/rpm)
| 75 / 102 / 2400
|
Starting system
| Electric Start
|
Dimensions
| Overall Length(mm)
| 5080
|
Overall Width(mm)
| 2600
|
Overall Height(mm)
| 2705
|
Feed Capacity(kg/s)
| 5
|
Fuel Tank Capacity(L)
| 210
|
Fuel Consumption(kg/ha)
| ≤30
|
Min. Ground Clearance(mm)
| 330
|
Operation Weight(kg)
| 3350
|
Driving System
| Crawlers
| Rubber Track
| 500 x 90 x 53(550 x 90 x 53 optional)
|
Track Gauge
| 1150mm
|
Transmission
| HST Capacity
| 45cc
|
Working Speed(km/h)
| Lower: 0-4.45
|
Medium:0-6.07
|
High: 0-7.6
|
Cutting
| Pickup Reel Diameter(mm)
| 900
|
Height Adjustment
| Hydraulic
|
Cutting Width(mm)
| 2200(2000/2500 Optional)
|
Threshing
Cylinder
| Quantity
| 1
|
Diameter x Length(mm)
| Φ640x2041
|
Grain Tank(m³)
| 250kg
|
Grain Unloading
| Manual
|
Operation Effeciency Estimated Value (ha/ hour)
| 0.4-0.8
|
Stalk Chopper
| Optional
|
