M3 High Precision Vertical Horizontal Turret Type Metal Universal Radial Milling Machine

Product Description

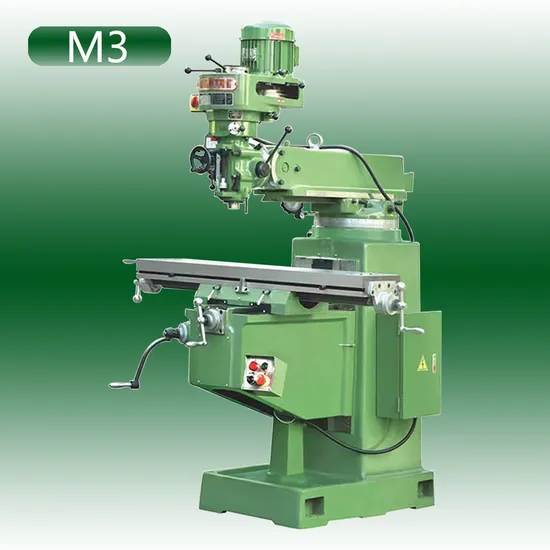

Vertical Milling Machine
This product series has a wide range of uses, including millingboring, drilling, tapping, etc, With a slideable worktable along theX,Y, Z axies and a milling head rotating around all three axes, thisproduct has an outstanding machining performance whileprocessing any angle or surface of the workpiece. This productseries is basically used in machine shops and tool rooms ofvarious industries., especially for manufacturing tools,clampsmolds, etc.
High-precision and high-speed headThe head has high speed and wide rangeof speed, which is able to make the mostof tool. The spindle sleeve is automaticallyfed and stopped.The head is equippedwith fine-tuning and overload protectiondevice,ensuring the accurate positioningof the tool and depth of cutting
Compact structure,small size and high flexibilityThe head is able to rotate 360 degree in the X-axisdirection,+90 deqree in the yaxis direction,and+45 degree in the Z direction,therefore the size ofworkpiece is allowed to be larger than the worktable
Apply centralized lubrication structure to worktableand lifting plateThis product is equipped with an oil pump to lubricatethe guide rail and the screw

Standard Models			M3	M4S	M4	M5	M6	SD6
Table Size		mm	254x1270(10"x50")	254x1270(10"x50")	254x1270(10"*x50")	254x1370(10"x54")	305x1370(12"x54")	305x1370(12"x54")
Travel	X-axis	mm	800	800	800	900	785	820
	Y-axis	mm	380	380	405	405	405	385
	Z-axis	mm	370	370	390	390	500	500
Guideway	Y-axis	mm	Dovetail	Square	Square	Square	Square	Double Dovetai
	Z-axis	mm	Dovetail	Dovetail	Square	Square	Square	Square
Spindle	Spindle Taper		R8/NT30	R8/NT30	R8/NT30	R8/NT30	NT40	Side Break R8/(NT30jNT40
	Spindle Quill Tiavel	mm	127
	No.of Spindle Speed	rpm	16 Speed
	Spindle Feed	mm/rev	0.076/0.003";0.038/0.0015";0.203/0.008"
	Spindle Min. Speed	rpm	66/110/175/270/550/930/1460/2270
	Spindle Max. Speed	rpm	132/220/350/540/1100/1860/2920/4540
T-Slot	Slot No.* Width	mm	3x16
	T-Slot Interval	mm	65
Motor	Voltage	V	380/415
	Frequency(HZ)	hz	50
	Main Motor		3HP	3HP	3HP	3HP	5HP	3HP/5HP
	Coolant Motor		1/8HP					1/8HP/90W
	Knee Motor		/	/	/	/	1/2HP	1/2HP/400W
Max weight on Table		kg	300	300	300	300	350	350
Saddle(W*H)		mm	285x510	285x510	285x510	285x510	335x650	305x550
Ram Travel		mm	510	510	510	510	620	510
Sleeve Diameter		mm	Ф85.70	Ф85.70	Ф85.70	Ф85.70	Ф105	Ф85.70
Spindle Center To Column	Min	mm	230	230	220	220	195	220
	Max	mm	600	600	590	590	675	590
Spindle Nose To Table	Min	mm	50	105	85	85	90	90
	Max	mm	420	475	475	475	590	590
Machine Size		mm	1670x1680x2060	1670x1680x2110	1670x1680x2150	1770x1680x2150	1770x1780x2300	1800x1680x2280
Mass of Machine		kg	1100	1300	1380	1400	1500	1480

Special Models			M4SA	M5A	M5T	M5AN	M5TN
Table Size		mm	305Ax1370	305Ax1370	305x1370(12"x54")	305Ax1370	305x1370(12"x54")
Travel	X-axis	mm	900	900	900	900	900
	Y-axis	mm	380	405	380	405	380
	Z-axis	mm	370	390	390	390	390
Guideway	Y-axis	mm	Square	Square	Square	Square	Square
	Z-axis	mm	Dovetail	Square	Square	Square	Square
Spindle	Spindle Taper		R8/NT30	R8/NT30	R8/NT30	NT40	NT40
	Spindle Quill Tavel	mm	127
	No.of Spindle speed	rpm	16 Speed
	Spindle Feed	mm/rev	0.076/0.003";0038/0.0015";0.203/0.008"
	Spindle Min.Speed	rpm	66/110/175/270/550/930/1460/2270
	Spindle Max Speed	rpm	132/220/350/540/1100/1860/2920/4540
T-Slot	SlotNo.*Width	mm	3x16
	T-Slot Interval	mm	65
Motor	Voltage	V	380/415
	Frequency(HZ)	hz	50
	Man Motor		3HP	3HP	3HP	5HP	5HP
	Coolant Motor		1/8HP
	Knee Motor		/	/	/	/	/
Max Weight on Table		kg	300	300	300	300	300
Saddle(W*H)		mm	285x510	285x510	305x510	285x510	305x510
Ram Travel		mm	510	510	510	620	620
Sleeve Diameter		mm	Ф85.70	Ф85.70	Ф85.70	Ф105	Ф105
Spindle Center To Column	Min	mm	230	220	220	195	195
	Max	mm	600	590	590	675	675
Spindle Nose To Table	Min	mm	105	85	85	90	90
	Max	mm	475	475	475	480	480
Machine Size		mm	1770x1680x2110	1770x1680x2150	1770x1680x2150	1770x1680x2200	1770x1680x2200
Mass of Machine		kg	1320	1420	1450	1440	1470

*As the appearance of the product may be updatedthe pictures in this atlas are for reference only,please refer to the actual product.
*Division i reserves the right to make anytechnical parameters without notice.

---
