Felicityess Advanced 10kwh Solar Battery Pack with Integrated Inverter

Product Description

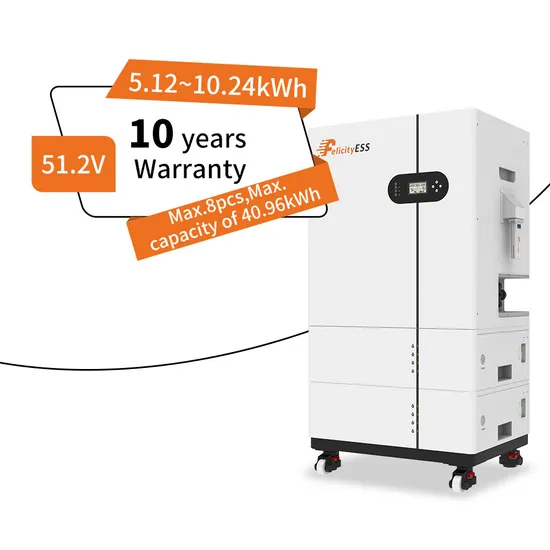

FelicityESS Advanced 10kWh Solar Battery Pack with Integrated Inverter
BECOME FELICITY NEWENERGY DEALER
0 Inventory, 0 Cost Investment, 0 Risk
FelicityESS- Top 100 Global Energy Storage Product Brands
1.4 Billion Annual Output Value
100+ Global Patented Technologies
30+ Global Branches
100+ Senior Experts and Professional Technical Talents in New Energy
Product Description
Product Parameters

Model	Apollo-4K6LP1G01-M2	Apollo-4K6LP1G01-M2	Apollo-5KLP1G01-M1	Apollo-5KLP1G01-M2
System Specification
Nominal Output Power	4600VA/4600W		5000VA/5000W
AC Output Frequency and Voltage	50/60Hz;L/N/PE 220/230Va.c
Grid Type	Single Phase
Energy Range(kWh)	5.12	10.24	5.12	10.24
Max.Charging/Discharging Current(A)	100
Battery Operating Voltage(V)	44.8-57.6
Battery Type	LiFePO4
IP Rating ofEnclosure	IP21
System Certification	VDE-AR-N4105;G99/1;EN50549-1;CEI0-21;AS 4777.2
Warranty Period[1]	10 years
Inverter Technical Specification
Max.PV Input Power(W)	6000		6500
Max.PV Input Current(A)	15/15
Rated PV Input Voltage (Vdc)	90~550
Start Up DC Voltage (Vdc)	130
MPPT Voltage Range(Vdc)	100~500
Max.PV Short-circuit Current(A)	18/18
No.of MPP Tracker	2/1
Peak Power(off grid)	2 time of rated power,0.2s
Power Factor	0.8leading to 0.8lagging
DCinjection current(mA)	THD<3%(Linear load<2%)
Display	LCD+LED
Operating Temperature Range(ºC)	-20ºC~55ºC,>45ºC Derating
Relative Humidity	15%~85%(No Condensing)
Dimension(Wx Dx H,mm)	600x450x640
Weight Appr. (kg)	60
Communication with BMS	CAN/RS485
Grid Regulation	VDE-AR-N 4105;G99/1;CE;EN50549-1, NRS 097-2-1;CEI 0-21;AS 4777.2
Safety Regulation	IEC 62109-1/2,IEC 62040-1
EMC	EN61000-6-1,EN61000-6-3
Max.efficiency	97.6%
Euro efficiency	97.0%
MPPT efficiency	99.9%
Battery Technical Specification
Nominal Voltage(V)	51.2
Battery Module Energy(kWh)	5.12	10.24	5.12	10.24
Scalability	Max.8pcs,Max.capacity of 40.96kWh
Battery Module Dimension (WxDxHmm)	600*450*180	600*450*360	600*450*180	600*450*360
Battery Base Dimension(WxDxHmm)	590*440*120
Battery Module Weight Appr. (kg)	46	92	46	92
Charging Temperature Range	0-55ºC
Discharging Temperature Range	-20-55ºC
Cycle Life	≥6,000 Cycles(Test conditions:0.2C Charging/ Discharging @25ºC,80%DOD.)
Battery Module Certification	UN38.3.CE
AC Output Voltage	230Va.c
AC Output Frequency	50/60Hz
AC Output Rated Current	20Aa.c		21.7Aa.c
Max.AC Output Current	40Aa.c
AC Output Rated Active Power	4600W*		5000W*
AC Output Rated Apparent Power	4600VA*		5000VA*
AC Output Power Factor	0.8 Leading To 0.8 Lagging

Certifications
Company Profile
FelicityESS New Energy Technologies is a leading, inverter manufacturer and energy system integrator with17 years of experience. With a 40,000 square meter facility and more than 1,000 employees, the company hasmore than 30 offices around. Our prod!sfotoucts include home energy storage batteries, all-in-svstems andsolar inverters.Our products offer flexibleenergy conversion, eficient storage solutions forhomes ana businesses
Our Factory
Packaging & Shipping
Our Exhibitions

FAQ
Q1: How to install and use the solar inverter?
A1: We provide an English manual and videos. All videos covering every step of machine disassembly, assembly, and operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have over 30 overseas offices and warehouses that can ship items to you by sea, air, or express delivery. We will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We have over 30 offices overseas with professional technical engineers and sales teams stationed year-round. They can address your pre-sales and post-sales issues. If any problem arises after delivery, we can send technical engineers to assist you. You can also contact us online via WhatsApp, Skype, WeChat, or email.
Q4: Can you customize the solar inverter for us?
A4: Of course. We offer customization for product specifications, brand name, machine color, and unique design patterns.
Q5: How can I become your agent?
A5: Contact us, and we will provide details about our dealer program.
Q6: What is the warranty for the inverter?
A6: 10 years.

---
