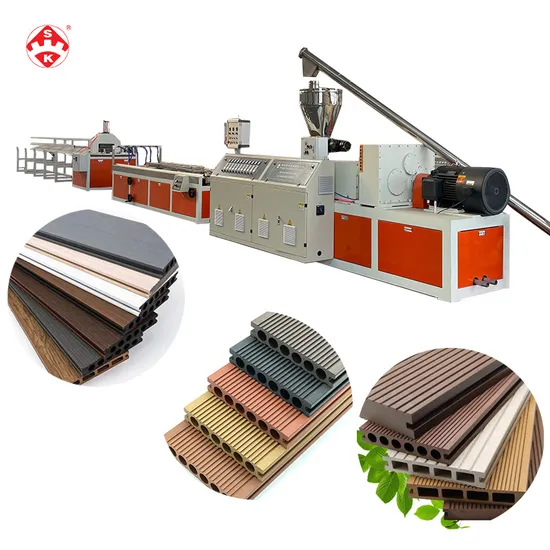

PE WPC Profile Machine WPC Composite Decking Flooring Extrusion Production Line Plastic Machine Extruder

Product Description

PE WPC Profile Machine WPC Composite Decking Flooring Extrusion Production Line Plastic Machine Extruder



PE WPC Machine are widely used on producing PE WPC decking, composit decking, WPC panel, WPC profiles for outder decoration,
Raw material: recycled PE + wooden fiber + additives.

How does Recycled PE WPC Decking Deck Board Making Machine work?
Step 1 : Mixing the raw materials: PE and Wood Powder with kinds of Additives, there is a formulate recipe for WPC products.
Step 2 : Granulation into Pellets: The Mixture materials from the mixer discharged into Buffer Silo, which is standing by for the Granulation into Pellets.

Step 3 : PE WPC Decking Deck Board Making Machine, Co-Extrusion is getting more popular, Inside is granulated pellets(mostly is recycled PE with Wooden Powders) and covering by a co-extrusion layer New PE , the marketing trend is full capped 360degree, for better performance in outdoors.

Step 4 : Surface treatment, there are three different types of Surface treatment after extrusion:
Scratch: Brushing the surface for a feeling like the nature wooden;
Embossing: Rolling Embossing make the wood grained concave-convex feeling surface,
Polish: Polishing a smooth and mat surface is widely used in garden.
Equipment List of Recycled PE WPC Decking Deck Board Making Machine ?

Twin Screw Extruder Extruder type: SJSZ65x132
Capacity: 350-400kg/h
Inverter: Schneider or Delta or ABB
Contactor: SIEMENS,
Motor: SIEMENS,55KW
Temperature control: OMRON
Vacuum pump: 4KW
Feding: screw feed with motor

2. Calibaration Plaftom


Length: 3000mm
Electrical forward moving
Driving motor: 1.5kw
Vacuum motor & water motor equipped
Recycling water cooling
Material of platform: stainless steel
3. Cutting Machine


Cutting motor: 2KW
Blade control: cylinder
Automatic length metering, cut as setting meters.

---
