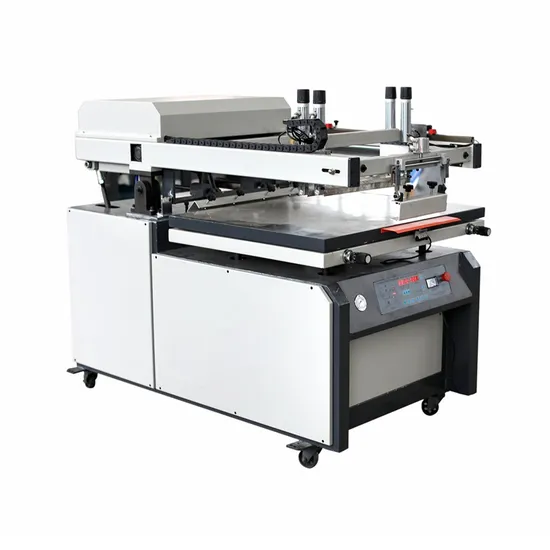

High Precision Screen Printing Machine Xf-6090c

Product Description

Product Description USE:
Be applied to the flat printing for glass,CD,nameplate,stickers,credit card,Ceramic colored paper,wooden toy puzzles,PCB,SMT tin ointment,and membrane switches in electronic industry.It is also applicable to the flat printing such as golden and silver cardboard,metal sheet,and other products with the material of PVC,which have high requirement in overprinting.
Feature:
1.The motor driven print head moves left/right.
2.Single chip controlled circuit,printing and plate goes up and down using independent driving source.
3.Pneumatic controller controls the printing knife moves up and down,photocell eye controls the stroke,which is independent to tune.
4.Set manual/semi-automatic/automatic three modes,the break time of printing is digital controlled.
5.Independent designed head rising and down setting,makes it convenient to clean the scraping blade/reclaiming blade,screen plate during loading and unloading.
6.Double guide column master the clamps arm,and install the adjusting device to adjust the distance between plates at the same time,which is convenient to tune.
Detailed Photos
Product Parameters

Modle	XF-6090C
Max.printing dimensions	600x900mm
Max.dimensions of the frame	950x1100mm
Dimensions of workbench	800x1000mm
Max.printing speed	1100pcs/h
Height of instant off-network	≈25mm
Use level of compressed air	0-15mm
Weight	600
Outside overall dimensions	1600x1200x1300mm
Voltage machine	3P 380V 50HZ
Printing motor	0.75kw
Lift motor	0.75kw
Wind motor	1.1kw
Power	2.6kw
