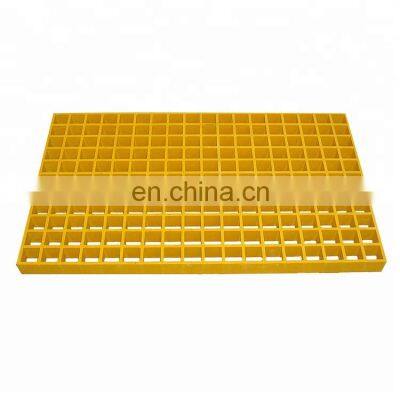

pigeon floor molded Light Weight and high strength grating frp
Firberglass Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
FRP grating are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard. Our gratings are manufactured in a wide range of sizes in order to guarantee an immediate solution to various design problems and are produced in monolithic panels that are easy and fast to install.
Frp grating producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.

Specification(mm)	Panel size(mm)	Weight(kg)	Customize
38*38*25	1220*3660	54	yes
38*38*30	1220*3660	70
38*38*38	1220*36601000*4007	8881
50*50*50	1220*3660	98
19*19*38*38*30	1075*3626	72
38*38*65	1030*4040	141
40*40*40	1010*4040	81
19*19*38*38*38	1220*3660	92
25*25*50*50*30	1220*3660	62

Product Details Show
Smooth surface of frp grating
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Gritted surface of frp grating Good mechanical property Inflaming Retarding Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
Concove surface of frp gratingFrp grating with concave surface can customized size
Yellow, green, black, grey, transparent, etc .Customized color are available.
Product Displays
Our producing types of frp(fiberglass) grating, from mesh size to panel size, and we can customized size of fiberglass grating according your requirement.
Application
Fiber (frp) graiting is used as tree grating ,car wash drain grating and walkway grating and so on, have widely use value.
