| Drilling Machine |

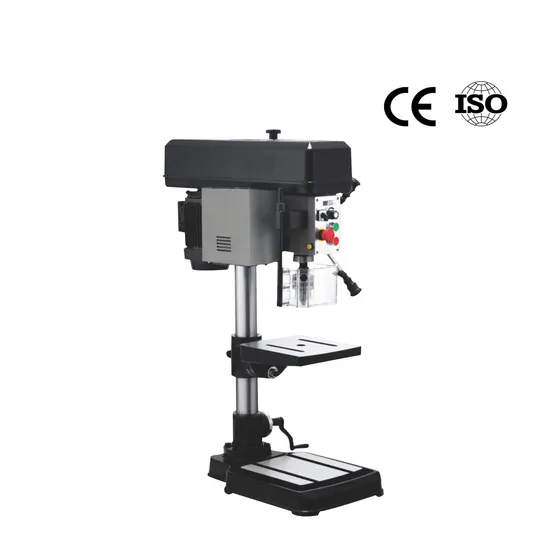

| Vertical Drilling Machine |
| Feature |
| Construction by heavy solid cast iron. Surface treated by multi-process spray treatment. Variable speed with 2 steps, digital display in the panel. With mandatory reversal function. 6 pole motor. Better rigidity, good wearing quality, high precision, big power, excellent appearance. Adopt to the transformation and upgrade of products in modern times. Improve production efficiency. |
| Specifications | ZS1720B-VS |
| Max. drilling capacity | 20mm |
| Max. tapping capacity | M12 |
| Chuck capacity | B16 1~16mm |
| Column diameter | 70mm |
| Spindle travel | 100mm |
| Swing | 410mm |
| Max. distance spindle nose to table | 300mm |
| Max. distance spindle nose to base | 540mm |
| Spindle taper | MT2 |
| Spindle speed range | 0~2100rpm |
| Step of spindle speed | Variable |
| Table size | 283x248mm |
| Base size | 520x345mm |
| Overall height | 1010mm |
| Motor power | 750W |
| Weight | 107kg |
| Packing size | 1055x610x380mm |
