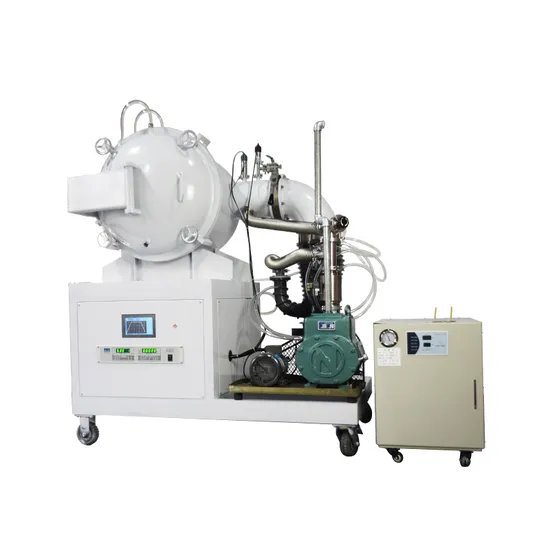

High Temperature Vacuum Heat Treatment Furnace for Silicon Carbide

Product Description

vacuum furnace high temperature high vacuum powder sintering vacuum oven furnace
IntroductionCY-V series high temperature vacuum furnace is mainly used in sintering cemented carbides, stainless steel line molding, stainless steel fiber, magnetic materials,and ceramic materials,and it also can be used in power metallurgy, refractory metals and magnetic material industry.We can sinter super hard, alloy,tungsten, titanium, copper, tantalum,stainless steel and rare-earth permanent magnetic material. Since the heater symmetrical distribute along the vacuum chamber, and temperature uniformity is high,you can actualize semi-automatic and automatic control according to your demands.
Features
1.Maximum energy efficiency is achieved by surrounding chamber thermal-efficient alumina fiber ceramic insulation. 2.Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
3.PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
4.Power control with 30 segments programmable.
Specification

Model	CY-V1700	CY-V1400	CY-V1200
Max. temperature	1700ºC	1400ºC	1200ºC
Working temperature	1600ºC	1300ºC	1100ºC
Temperature accuracy	+/-1ºC
Heating rate	0-20C/min	0 -20C/min	0-30C/min
standard chamber size	the chamber size is customized. 150*150*150mm ; 200*200*200mm; 300*300*300mm ; 400*400*400mm ; 500*500*500mm
Temperature control	Digital 50 segments programmable
Max. vacuum level	7*10ˆ(-3)Pa
Heating element	1800 MoSi2 rods	SiC rods	resistance wire
Refractory material	Alumina ceramic fiber
Thermal couple	B type	S type	K type
Working voltage	AC 110-480V 50-60Hz
Warranty	12 month (exclusive wearing part)

Package
Factory
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
