Basic Info.
Automatic Grade
Semi-Automatic
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Warranty of Core Components
2 Years
Core Components
Bearing, Gearbox, Motor
Working Length
1000mm / 39inch
Place of Origin
Shandong, China
Key Selling Points
Competitive Price
Applicable Industries
Manufacturing Plant, Machinery Repair Shops
Diameter of Roll(mm)
400 mm
Rotation Speed of Front Roll(Rpm)
15 - 19 Rpm
Length of Roll(mm)
1000 mm
Roll Ratio(Front/Back)
1:1.25
Lubrication Type
380V or as Customized
Transport Package
Customized
Specification
4350x1850x1785mm
Production Capacity
500sets/Year
Product Description
Application:

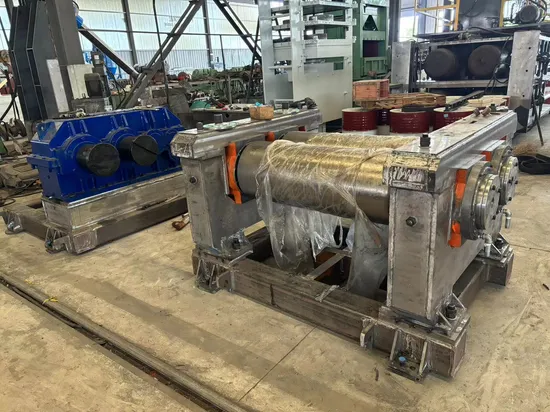

This 2 roller open mixing mill ensures the perfect and uniform blending of natural and synthetic rubber with other raw materials. The open mixing mill can mixall the raw materials to the desired specifications.
Structural Features:
1. This open mixing mill can be equipped with hydraulic or mechanical device which can automatically make the rubber material be mixed over and over again. So the labor intensity and mixing time can be reduced greatly.
2. The open mixing mill speed reducer is planetary speed reducer, it is low noise, high efficiency, good transfer effect,
3. To ensure the safety of staff and equipment, we install convenient button for emergency.
4. All the open mixing mills we provide to you are checked after 3-7 hours non-stop full load operation, perfect quality and low noise. Customers can use them immediately after installation.
Model
| Roller(DxL)(mm)
| Front Roller Linear Speed(m/min)
| Friction Ratio
| Motor Power
(KW)
| Overall Dimension (LxWxH)(mm)
|
XK-160
| φ160x320
| 8.95
| 1:1.37
| 5.5
| 1500x750x1500
|
XK-230
| φ230x600
| 10.21
| 1:1.19
| 15
| 2800x1200x1120
|
XK-250
| φ250x620
| 14.1
| 1:1.17
| 18.5
| 3400x1500x1650
|
XK-300
| φ300x750
| 15.1
| 1:1.25
| 22
| 3500x1600x1700
|
XK-360
| φ360x900
| 16.25
| 1:1.25
| 30
| 3780x1850x1750
|
XK-400
| φ400x1000
| 18.65
| 1:1.27
| 37
| 4350x1850x1785
|
XK-450
| φ450x1200
| 24.26
| 1:1.27
| 55
| 5200x2380x1840
|
XK-560
| φ560xφ510x1530
| 27.72
| 1:1.2
| 90
| 5845x2284x1978
|
XK-550B
| φ550x1500
| 27.94
| 1:1.22
| 110
| 5870x2475x2045
|
XK-610
| φ610x2000
| 28.42
| 1:1.17
| 160
| 7070x2290x1840
|
XK-660
| φ660x2130
| 28.6
| 1:1.24
| 245
| 7465x3662x2080
|
XK-710
| φ710x2200
| 30
| 1:1.09
| 280
| 7500x3500x1800
|
>>
