Hanbs Dongguan Swiss CNC Lathe with Double Spindle and High Yielding Procision Parts

Product Description

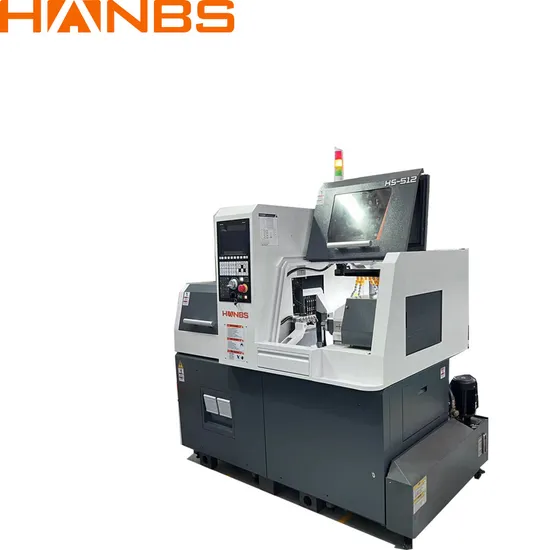

HS-512 Hanbs Dongguan Swiss CNC Lathe with Double Spindle and High Yielding Procision Parts
Product description:
Product Photoes
Increased Machining Efficiency:
Dual-spindle tools can perform two machining operations simultaneously, significantly reducing machining time and increasing production efficiency. Reduced Tool Change Time:
With the ability to quickly switch between tools on two spindles, tool change time is minimized, further enhancing productivity.
Its operation panel, unlike the others, is erected in the very center, so that the movement of the spindle and the back-axis can be observed at the same time during operation.
Increased Machining Efficiency:
Dual-spindle tools can perform two machining operations simultaneously, significantly reducing machining time and increasing production efficiency. Reduced Tool Change Time:
With the ability to quickly switch between tools on two spindles, tool change time is minimized, further enhancing productivity.
Product Information
Maximum processing diameter Φ12mm
Maximum processing length(2.5d in the mode without guide bush 60mm
Axial maximum drilling diameter Φ5mm
Axial maximum tapping size M5
Maximum spindle speed(for short-term use only) 10000rpm
Radial maximum drilling diameter Φ5mm
Radial maximum tapping M4
The maximum clamping diameter of the back spindle Φ12mm
The maximum workpiece extension of the back spindle 30mm
The maximum drilling diameter of the back spindle Φ5mm
The maximum tapping diameter of the back spindle M5
The maximum speed of the back spindle(only for short-term only) 12000rpm
The maximum take-out length of the workpiece 40mm
Side powered tool unit 3
Knife row(12*120*5+6*120*1) 5
Fixed knife(Φ25mm*4*2 for the front and back;Φ25mm*4 for the back) 13
The maximum number of tools installed as standard 21
Z1,Z2,X2,Y Axis fast forward speed 24m/min
X1 Axis fast forward speed 18m/min
Spindle center height 1000mm
Input power 7KW
Weight 1500kg
Dimensions(WXDXH) 1950*1100*1700mm Packing and Shipping

Factory
Certifications
Utility model patents Utility model patents Utility model patents
Utility model patents Utility model patents Utility model patents
Sample Display

Q&A
1. What is a dual-spindle small Swiss-type CNC lathe?
A compact, high-precision machine with two spindles for machining both ends of a workpiece simultaneously. 2. How does it improve production efficiency? By machining both ends of a workpiece at the same time, reducing cycle time. 3. What types of parts are best suited for this lathe? High-precision, complex parts like medical devices, aerospace components, and automotive parts. 4. How does the dual-spindle design enhance accuracy? Ensures better concentricity by machining both ends in one setup. 5. Can it handle different materials? Yes, it works with various materials, including metals and plastics. 6. What impact does it have on tool wear and maintenance? Distributes the workload, extending tool life and reducing maintenance. 7. Is it suitable for automated production? Yes, it's ideal for high-volume, automated manufacturing. 8. How does it improve surface finish quality? Simultaneous roughing and finishing operations reduce tool marks. 9. How does it improve workflow efficiency?
. Reduces the need for transferring workpieces between machines.

---
