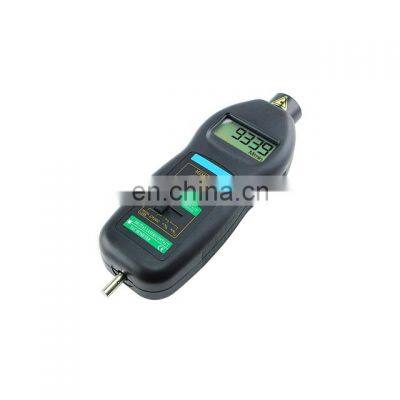

DT-2236 digital motorcycle tachometer

Product Description

Product Description
Product introduction
Used to measure rotative velocity, surface speed, frequency of motor. Applicable to the product departments of motor, fan, paper-product, chemical fiber, washingmachine,automobile, airplane, steamer etc.
Features:
Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT
TACH.(RPM , m / min, ft / min ).
1. Digital display with no guessing errors.
2. Wide measuring range and high resolution.
3. The last value / max. value / min. value will be automatically stored in memory.
4. The use of durable, long-lasting components, including a strong, light weight
ABS-plastic housing assures elegant shape and ease of use.
TECHNICAL SPECIFICATIONS:

DT-2236 TACHOMETER:
Measuring Range	Laser	2.5 ~ 99,999 r / min
	Contact	0.5 ~ 19,999 r / min
	Surface Speed	0.05 ~ 1999.9 m / min 0.2 ~ 6560 ft / min
Resolution	Rotative Velocity	0.1 r / min (0.5 ~ 999.9 r / min) 1 r / min (Over 1000 r / min )
	Surface Speed	0.01 m / min (0.05 ~ 99.9 m / min) 1 m / min (Over 100 m / min ) Or 0.1 ft / min (0.1 ~ 999.9 ft / min) 1 ft / min (Over 1000 ft / min )
Accuracy	± (0.05% n + 1 d)
Sampling Time	1.0 s (Over 60 r / min )
Test Range Select	Automation
Memory	Max / Min / Last Value
Time Base	Quartz Crystal
Laser Tach Detecting Distance	50 ~ 150 mm / 2 ~ 6 inch (Typical), Max. 300 mm / 12 inch
Power Consumption	90 mA (Testing)
Operating Temperature	0 ~ 50 °C
Power Supply	4 x 1.5 V AA size (UM-3) battery
Dimensions	215 x 65 x 38 mm
Weight	200 g (Including Batteries

Packing&Shippng

Product package details
Case	Carton as export standard
Outer packing	Carton as export standard
Mini order quantity	1 set
Net weight	334 g (Not Including Batteries)

Our warranty

Warranty TermteEM82E	18 Month's Warranty
Our warranty	1. We offer 18 Month's Warranty on all product free of charge(EVEN EXPIRED FOR WARRANTY PERIOD WE ALSO OFFER YOU FREE,THIS DEPENDS ON the REAL SITUATION) ,but the user should be responsible for one -way transportation fee from the customer to the factory.
	2.We offer instrument installtion for customer,and the charges will be made according the cost ,for any hardware failure of the instrument ,we recommend customer send back the instrument to us for service,due to the fact that the instrument is made of microprocessors and it will be difficult to perform field maintenance,Before sending back the instrument ,please try to contact us first to make sure what the problem is. for other operational problem.please contact our service department by telephone,fax,or email and internet ,in the most cases,the problem should be solved immediately .

---
