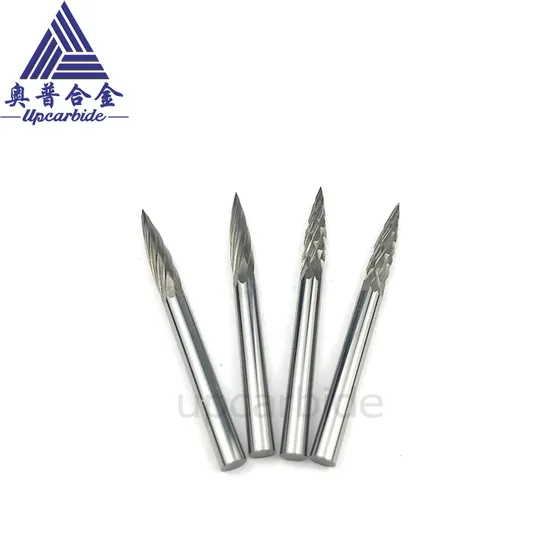

| Product Name | 92.5HRa hardness diameter 3mm*36mm tungsten carbide reamer |
| Material | tungsten carbide |
| Color | grey |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc |
| Brade | ZZUP |
| Grain size | 0.6um |
| Used | for milling 45HRC,50HRC,60HRA metals |
| Grade | Density(g/cm3) | Hardness (HRA) | T.R.S (MPa) | Grain size (μm) | Composition (%) | Equal to ISO |
| YU12 | 14.1~14.15 | .≥92.5 | ≥4000 | 0.2~0.5 | 12% CO 88% WC | K40~K50 |
| YL10.2 | 14.4~14.6 | ≥92.2 | ≥4000 | 0.6~0.8 | 10% CO 90% WC | K20~K30 |
| YG6X | 14.85~15.0 | ≥92.0 | ≥3860 | 0.8~1.0 | 6% CO 94% WC | K05 |
| YG15 | 14.0~14.1 | ≥85.0 | ≥2800 | 1.2~2.0 | 15%Co 85% WC | K30~K40 |
| YG10 | 14.5~14.6 | ≥85.5 | ≥2600 | 1.2~2.0 | 10%Co 90% WC | K20 |
| YG8 | 14.65~14.85 | ≥89.5 | ≥2320 | 1.2~2.0 | 8% CO 92% WC | K20 |
| YG6 | 14.85~15.05 | ≥90.0 | ≥2150 | 1.2~2.0 | 6% CO 94% WC | K10 |
| Diameter(mm) | Length(mm) | grinding and polishing |
| 0.3~1.0 | 5~330 | h6,h7,H6 or H7 |
| 1.0~3.0 | 5~330 | h6,h7,H6 or H7 |
| 4.0~80 | 5~1000 | h6,h7,H6 or H7 |
