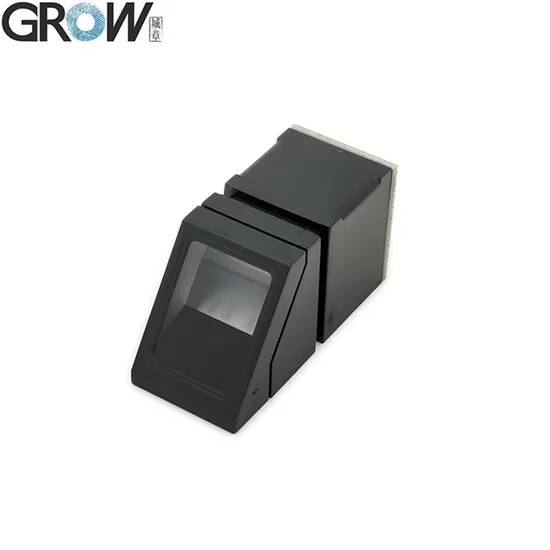

Grow R307s Cheap 1000 Capacity USB Uart Optical Fingerprint Module

Product Description

Description1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi
7. Have finger detection function.
8. R307S fingerprint capacity: 1000


Brief description of R307S fingerprint module:
1. Fingerprint capacity:
The storage capacity of R307S fingerprint module is 1000.

2. Description of interface:
R307-S fingerprint module has RS232 and USB2.0 at the same time.USB2.0 interface can connect to the computer;RS232 interface is TTL level, and the default baud rate is 57600, which can be changed. Please refer to the communication protocol.It can be connected with microcontroller, such as ARM, DSP and other equipment with serial port, and the microcontroller of 3.3v and 5V can be connected directly.When connecting to the computer, please pay attention to the level conversion, such as the MAX232 circuit.

3. Module detection
After the fingerprint module is powered on, the fingerprint collection window will flash, indicating that the self-test is normal. If it does not flash, please carefully check the power supply, whether it is connected backwards or wrongly.The chip has some heat when working normally, this is normal phenomenon, the product has passed strict test, can rest assured to use.
Specifications·Type: Optical
·Interface: USB/UART(TTL logical level)
·Resolution: 500 DPI
·Work Current: Typical ≤75 mA
·Voltage: DC 4.2-6.0V (or 3.3V)
·Fingerprint capacity: 1000
·Dimension: 52 *20*22 (mm)
·Image Capture Surface: 15*11 (mm)
·Backlight: Blue
·Sensor Life: 100 million times
·Static Indications: 15KV
·Character file Size: 256 bytes
·Template Size: 512 bytes
·Security Level: 5 (1,2,3,4,5(highest))
·Scanning Speed: < 0.3 second
·Verification Speed: < 0.2 second
·Matching Method: 1:N
·FRR (False Rejection Ratio): ≤0.1%
·FAR (False Acceptance Ratio): ≤0.0001%
·Operating Environment Temperature: -20°C ---50°C
·RS232 communications baud rate: 9600BPS~115200BPS changeable
Files·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

---
