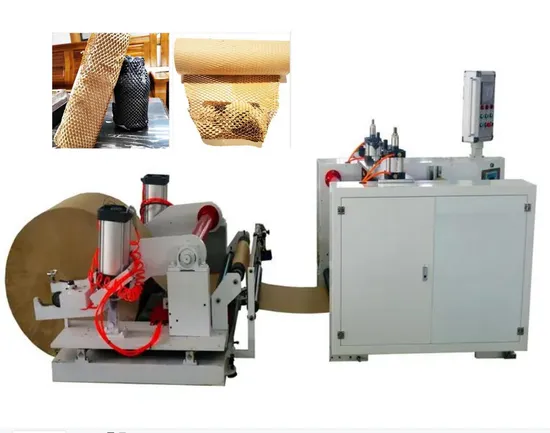

Cushioning Wrap Honeycomb Paper Making Machine

Product Description

500mm width protective cushion honeycomb paper making machine wrapping rolls cutter for packaging
Product Description
Characteristics - Net making and rewinding could be completed at the same time. - Machine is light in weight, small size, low noise. - High efficiency and energy saving. - Fast dynamic response and stable running speed are the significant advantages. - Adopts frequency conversion speed regulation, fully integrated circuit control. - Winding and unwinding tension is automatically controlled. - Two sections of electronic meter to ensure the accuracy. - Batch pause and delay time can be set. Product Parameters
Product Paramenters

SPECIFICATIONS FOR HIGH SPEED HONEYCOMB PAPER MAKING MACHINE
Model	FMYY-500
Unwinding width	500mm
Unwinding roll diameter	1200mm
Rewinding width	500mm
Rewinding roll diameter	400mm
Winding mandrel	1"/1.5"/2" options
Running speed	100-120m/minute
Power	4kw
Power voltage	380v
Machine weight	Approx. 1000kgs
Machine size	2900(L ) x 1500(W ) x 1400 mm(H)

Detailed Photos
After Sales Service ZHECHUANG always be your best business
Offer bag making machines with the best quality and solutions.
1. Designing upon customer's project requirements.
2. Complete solutions from A to Z depending on your bag making machine.
3. Drawing of machines and layout.
4. Machine proceeds to manufacture.
Professional and dedicated after-sales service.
1. Pre-shipment testing
2. Delivery to customer factory.
3. Phone services for the consumers' requirements on assembling products;
4. The video instructing the consumers on how to get the heaters to work or other problems.
Packaging & Shipping

---
