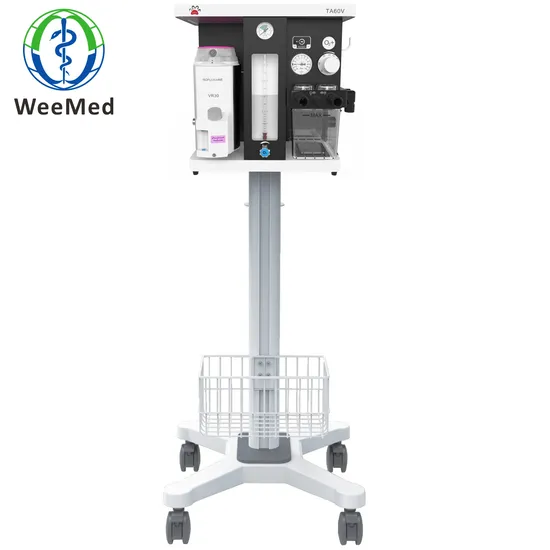

Ta-60V Vet Anesthesia Equipment Portable Medical Animal Veterinary Anesthesia Machine with Trolley Cart with Bain Module

Product Description

Products Pictures
Product Description TA60V is a high-end anesthesia machine used in animal hospitals. The design of the product adheres to the concept of anesthesiologists-oriented, completely abandoning the design idea of traditional animal anesthesia machines that only considers product costs.
Through the innovation of product structure and circuit module design, all the gauges and main operating elements of TA60V are arranged on the front of the product to facilitate the operation and observation, and also realize a variety of installations and applications such as wall-mounted, desktop and stand for one model.

Ventilation modes:	IPPV; A/C; SIMV;
Ventilator parameter ranges
Flow meter	O2(0-5L/min)
Rapid oxygen supply	35L/min-75L/min
Tidal volume(Vt)	0, 20 mL ~ 1500 mL
Frequence(Freq)	1bpm ~ 100 bpm
I/E	2:1~1:6
Pressure triggering sensitivity(PTr)	-20 cmH2O ~ 0 cmH2O(Based on PEEP)
Flow trigger sensitivity (FTr)	0.5 L/min ~ 30 L/min
SIGH	0(off) 1/100 ~ 5/100
Apnea Ventilation	OFF,5 s ~ 60 s
Pressure Limit	20 cmH2O ~ 100 cmH2O
Monitored Parameters
Frequence(Freq)	0 /min ~ 100 /min
Tidal volume(Vt)	0 mL ~ 2000 mL
MV	0 L/min ~ 100 L/min
Graphical display:
P-T(pressure - time)
F-T(flow - time)
Size 1. Wooden case packing size:L 810*W 760*H 520mm , GW:53KG ; NW:30KG 2. Wooden case packing size:L 650*W 690*H 520mm , GW:40KG ; NW:20KG Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	<11.3±0.3V
No tidal volume	≤5Ml within 6s
High oxygen concentration alarm Low oxygen concentration alarm	19%-100% 18%-99%
High Airway pressure alarm Low Airway pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm	20cmH2O-100cmH2O 0cmH2O-20cmH2O Adult(5L/min-20L/min) Paed(1L/min-15L/min 0-10L/min) (PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	<12.5 kPa
Fan error Oxygen deficit	Show on screen Show on screen
Working conditions
Gas source	O2
Pressure	280kPa-600kPa
Voltage	100-240V
Power frequency	50/60Hz
Input power	60VA
Vaporizer

Package
Application
Certificates
Factory
Exhibition
Customer Feedback
