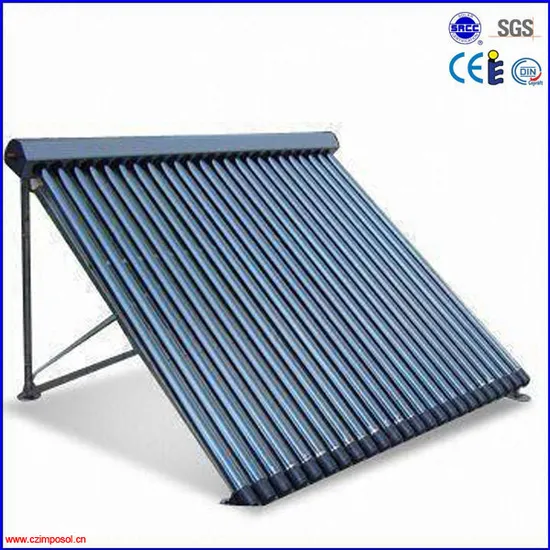

2016 70mm Metal-Glass Evacuated Tube Heat Pipe Solar Collector

Product Description

Main Specifications
Inner manifold:Copper heater pipe(ASTM:C1100.DIN:ECu-58);Potable water rated, Maximum pressure:800Kpa Vacuum Tube:Borosilicate 3.3 single wall glass-metal 70*1800/1900mm.High-efficient coating ,Vacuum;P<5*10-3Pa Heat pipe:High purity"oxygen free"copper( ASTM:C10200,DIN:OF-Cu). Startup temperature:~30deg Outer manifold:5005-H16 Aluminum with Anodized or Powder Coated Finsh or 304 stainless steel Insulation:High quality Glass Wool (K=0.043W/mK),Average>50mm Frame:202 Stainless Steel or 6005-T5 Aluminum Alloy Connection Options:22mm OD copper (Europe) Rubber Components:HTV Silicone Rubber (UV stabilised) Reflector:Aluminum component/ stainless steel

Model	Lighting Area(m2)	Vacuum Tube			TankNet Capacity(Liters)	20GP/10HQLoadingQty (sets)
		Φ(mm)	L(m)	NO.
IPRB C 701910	1.04	70	1900	10	100-120	81/217
IPRB C 701915	1.56	70	1900	15	150-180	56/150
IPRB C 701920	2.08	70	1900	20	200-240	43/115
IPRB C 701710	0.95	70	1700	10	85-100	89/238
IPRB C 701715	1.425	70	1700	15	125-150	62/165
IPRB C 701720	1.9	70	1700	30	170-200	48/126

Automatic Workshop
1.Modern workshops have advanced production lines and professional knowledge of assembly.
2.Flow card to record each details carefully.
3.100% self-inspection before packing.
Advantages
1.Economic and practical products from Sunlight , reliable performance.
2.Choose Sunlight, choose a rest assured.
3.Advanced production lines and test rooms.
4.Perfect QCP.(Quality control plans)
Application: car, truck, bus, cooler room
Packaging & Shipping
Strong packaging to ensure safety during transportation.
Export wooden box packaging for products.
FAQ
Q1.Can I have a sample for testing?
A: Yes,of courses we can supply the sample for you !
Q2.Can I add my logo on the water tank?
A:Yes,OEM and ODM are available for us.But you should send us LOGO image.
Q3. How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.If it is the men-made problems,we also send the spare parts,but you should pay.
Q4.Do you have inspection before delivery?
A:100% self-inspection before packing
Q5.Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.Here is our factory address:No. 5 Shengda Road, Konggang Industrial Park ,Luoxi Town, Xinbei District, Changzhou City, Jiangsu Province China.
Basic Information
Product/Service (We Sell):Solar Water Heater
Brands: IMPOSOL
Number of Employees:51 - 100 People

---
