US$15.00-50.00
|
800 Rolls
(MOQ)
|
Basic Info.
Surface Treatment
Galvanized ,PVC Coated
Weave Technique
Plain Weave
Surface
Galvanized ,,Electro Galvanized,PVC Coated
Feature
Corrosion Resistant ,Long Life
Product
Chicken Wire Netting
Transport Package
Plastic Film Then on Pallet
Production Capacity
10000rolls Per Month
Product Description

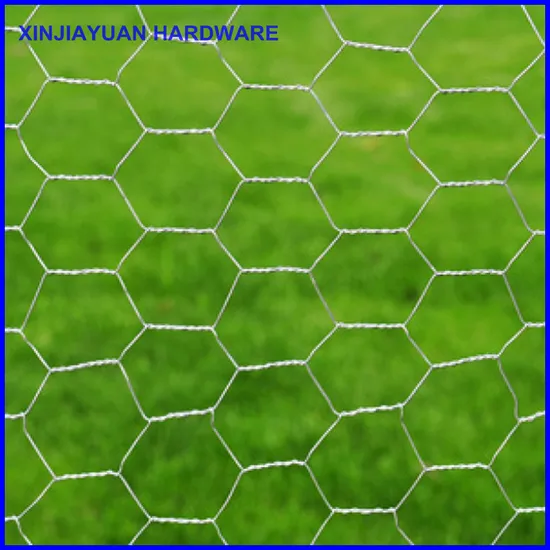

Hexagonal Wire Netting Product Description
Product Specification
| Specification of hexagonal wire netting |
| Specifications | Wire Diameter | Width |
| Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | Feet | Metric |
| 3/8" | 10 | 0.5 | BWG27-23 | 0.40-0.6mm | 1"-6" | 0.1-2m |
| 1/2" | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 5/8" | 16 | -0.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 3/4" | 20 | -0.4 | BWG26-20 | 0.46-0.9mm | 1"-6" | 0.1-2m |
| 1" | 25 | 1.5 | BWG25-19 | 0.5-1.0mm | 1"-6" | 0.1-2m |
| 1-1/4" | 31 | -3 | BWG24-18 | 0.56-1.2mm | 1"-6" | 0.2-2m |
| 1-1/2" | 40 | -0.5 | BWG23-16 | 0.6-1.65mm | 1"-6" | 0.2-2m |
| 2" | 51 | -0.5 | BWG22-14 | 0.7-2.0mm | 1"-6" | 0.2-2m |
| 3" | 76 | -0.5 | BWG21-14 | 0.8-2.0mm | 1"-6" | 0.3-2m |
| 4" | 100 | -0.5 | BWG20-12 | 0.9-2.8mm | 1"-6" | 0.5-2m |
PVC Coated Hexagonal Wire Netting |
Mesh |
Wire Gauge (MM) |
Width |
Inch |
MM |
- |
- |
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
Application
Reinforcement of plaster, screed;
Reinforcement surface for laying ceramic tiles;
Reinforcement plates facade insulation in heavy plaster systems (galvanized);
Production of gabions;
Mesh for chicken coop, enclosures for birds and animals;
For rabbits wire netting;
As garden fencing support for climbing plants;
Protection of trees, plants and crops;
Light fittings for sculptural works;
For protection against rockfall, strengthening the hillsides and riverbanks.
Main Features
Oxidation -resistant, good tensile strength.
Corrosion- resistant, rust-resistant.
Uniform mesh size, flat and even mesh surface, weave tightly.
Galvanized /pvc coated for longer life, low costs
Easy to handle and cut.
Welcome your inquiry.
>>
