Cast Steel Hot Sale High Holding Power Danforth Anchor for Yatch

Product Description

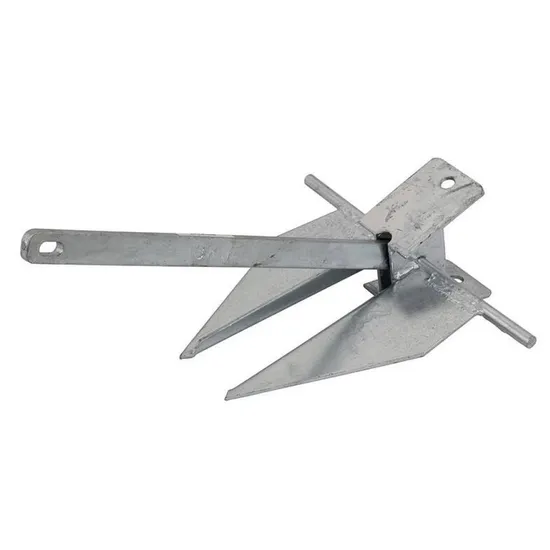

Cast Steel Hot Sale High Holding Power Danforth Anchor For Yatch

Type	Danforth Anchor
Accessories	Anchor Chain ,Kenter Shackle,End Shackle,Swivel Group,Type A&B Swivel Anchor,Buoy Shackle,Pear Shackle,Triangle Plate,Forlock Shackle
Size	From100lbs-50000lbs
Standard	GB/T 548-1996,
Certification	ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS...
Material	ZG230-450H,Q345C
Surface	Black Painted or Galvanised

NOMINAL WEIGHT(lbs)	SIZE (mm)						Shackle Model
	A	B	C	D	E	F
100	159	322	714	485	800	219	a4
150	183	372	793	560	926	253	a5
200	203	412	874	621	995	281	a6
250	225	457	960	689	1075	312	a6
300	228	461	1000	706	1166	314	a7
400	257	522	1090	788	1284	356	a8
500	274	554	1180	836	1380	378	a9
600	290	588	1253	888	1466	401	a9
750	314	635	1350	958	1578	433	a9
1000	344	694	1488	1060	1739	472	all
1250	367	741	1603	1135	1864	505	a12
1500	396	800	1703	1207	1988	545	a12
2000	438	888	1875	1336	2190	604	a14
2500	470	950	2020	1432	2300	647	a14
2625	470	950	2020	1432	2300	647	a14
2750	485	960	2120	1432	2335	650	a14

NOMINAL WEIGHT(lbs)	SIZE (mm)						Shackle Model
	A	B	C	D	E	F
3000	502	1033	2146	1575	2396	710	a14
3500	550	1111	2265	1677	2515	757	a15
4000	552	1114	2365	1680	2623	759	a15
5000	595	1200	2480	1811	2850	818	a16
6000	630	1274	2680	1920	3164	866	a17
6600	652	1317	2792	1986	3260	897	a19
8000	692	1398	2970	2109	3475	971	a19
9000	715	1448	3080	2200	3490	990	a20
10000	735	1484	3200	2270	3591	1010	a21
15000	851	1700	3680	2610	4100	1160	a23
20000	936	1870	4050	2870	4510	1276	a26
30000	1136	2250	4900	3400	5400	1520	a30
35000	1208	2414	5250	3670	5830	1642	a31
40000	1286	2588	5625	3930	6250	1758	a32
45000	1378	2745	5968	4172	6610	1867	a33
50000	1450	2890	6282	4393	6950	1965	a34

Danforth Anchor is a high holding power stockless anchor, it's used as bow anchor and mainly applied to bulk carriers and container ships. It's designed and produced according to Chinese marine standard CB/T 3972-2005<AC-14 high holding power anchor>.The AC14 Anchor is a stockless conventional anchor and has been a very popular model for many years. This anchor type is still found on many vessels as it is sturdy, balanced and thanks to the shape of its head, especially suitable for closing the pocket. The AC14 anchor's weight range is between 30 kgs and 19500kgs. We always supply these anchors with 100% original class certificates.
These anchors can be supplied with a clean bitumen coating dispatched from Rotterdam. You can choose to have them in a specific colour of paint and also with a hot dip galvanized finish. The end result is not the same as with galvanizing plate steel anchors, but it helps keep the anchors looking their best for somewhat longer.
Approval Standard: 1. Chapter 10, Part 1 of CCS rules for Materials and Welding 2015 and Its Amendments.
2. CB/T 3972-2005<AC-14 high holding power anchor>.
3. CB/T3983-2008<Stockless Anchors>
Produce Features
Thirty Party Certificate:
Lloyd's Rigister of Shipping (LR)
American Bureau of Shipping (ABS)
Det Norske Veritas (DNV)
Germanischer Lloyd (GL)
Bureau Veritas (BV)
Korean Register of Shipping (KR)
Nippon Kaiji Kyokai (NK)
Registro Ltaliano Navale Group (RINA)
China Classification Society (CCS)
Russian Maritime Register of Shipping (RMRS)
Indian Register of Shipping (IRS)
Croatian Register of Shipping (CSR) package
Ql.Why choose Our Company?
A: We have advanced equipment, an excellent production team, strict quality control, Welcome to visit the factory to confirm
02.Can you accept a sample order?
A: Yes, It is acceptable! We can provide samples for quality inspection
Q3. Can you give me a better price?
A: First, we are a Manufacturer in China. If you have a big demand for a certain quantity, we can offer discounted prices. Please contact us to get some discounts
Q4. Which delivery methods are available?
A: By sea or air.
Q5. How can I place an order?
A: Please provide your reguirements or application and send us an order byE-mail with your detailed information, then we willsend you a PI to confrm Then,,if all information is right you can make a 30% deposit payment. Finally, we will arrange the order as soon as we receive your advance payment!

---
