Factory Supply Manual Hand Magnetic Lifter 100kg Permanent Magnet Lifter Elevador Magnetico Permanente

Product Description

Product Description
Brief Introduction for PML:

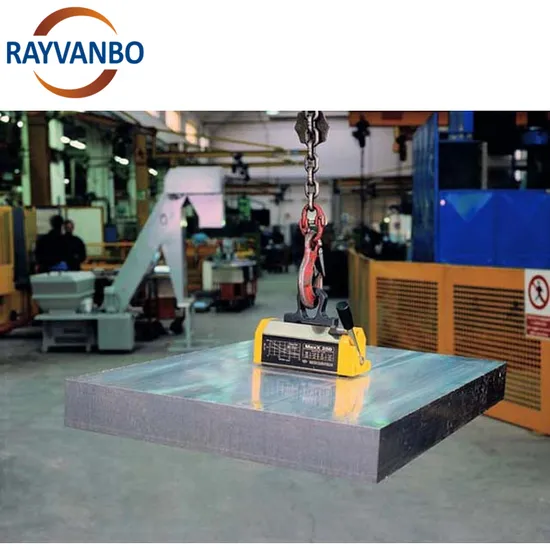

Permanent Magnetic lifter which can greatly improve the magnetic steel material clamping efficiency. The permanent magnet lifter is a high-performance rare earth material NdFeB as the core, through the hand pull the suction cup handle rotation, thus changing the inner chimney NdFeB magnetic system, to be processed workpiece suction or release. Permanent Magnetic lifter is the machinery factory, mold factory, and other machining field widely used magnetic fixture.
Magnetic Lifters has strong magnetic path produced by NdFeB magnet which supply permanent power, On and off of the magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply.
Permanent Magnetic Lifter Features:
1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.3. Using high-performance permanent magnet, ensure the power and high safety.4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.
The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.
Product Parameters

Model	Lifting capacity (kg)		Dimension				Net weight (kg)
	Steel plate	Cylindrical	Length	Width	Height	Handle
PML-100	100	50	92	62	69	155	3.2
PML-200	200	100	130	65	69	155	5.4
PML-400	400	200	160	95	95	200	11
PML-600	600	300	210	120	120	230	20
PML-1000	1000	500	260	150	140	255	40
PML-1500	1500	750	340	150	140	255	48
PML-2000	2000	1000	400	170	170	320	74
PML-3000	3000	1500	440	170	170	380	105
PML-5000	5000	2500	600	230	215	600	248

Any question will be sincerely and professionally handled! Waiting for your inquiry!
Packaging & Shipping
About Us
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
