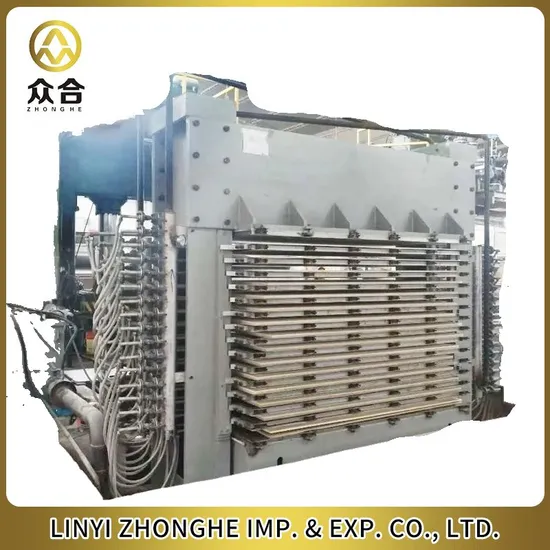

Woodworking Wood Hot Press Machine

Product Description

Detailed Photos
Product Parameters

No.	Model	BSJQARY-4*8-600T-10L
1	Hot press plate size	2450*1250*52 mm, 10 sheets
2	Opening size	100 mm
3	Hydraulic pistons	4 units, diameter 260mm, stroke 1000mm
4	Pressure Capacity	600 Tons
5	Hydraulic System	hand and automatic control
6	Hydraulic System allowed pressure	25 M pa
7	Low pressure Pump	250 ml/rev,11KW motor
8	High pressure Pump	10 ml/rev, 5.5KW motor
9	Heating Medium	Steam or Heat Transfer Oils

Company Profile
WHAT WE DO
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications

Packaging & Shipping

Frequently Asked Questions
1. Rich experience and professional design
We have abundant experience in plywood production, also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provideS one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-salesservice team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.

---
