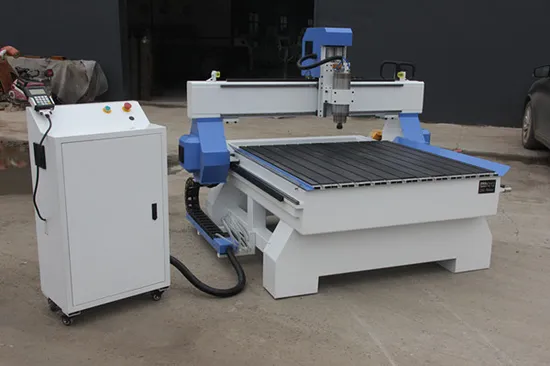

Cheap 1200X1200mm 3kw/5.5kw Wood Cutting Engraving Machine

Product Description

Cheap 1200x1200mm 3kw/5.5kw wood cutting engraving machine

Features:
*Adopt imported all-steel square guide rail with the high precision,ensure machine frame much stability and durability.
*High accuracy ball screw imported from Germany assure machine frame with the high precision.
*Break point and break bits continue engraving function can support up to nine points and can engrave at any places as you like.
*Compatible with Type3 / artcam /castmate/proe/coreldraw/wentai and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works.
Applicable materials:
Wood ,Alumnium industry,3D technology ,arcylic cutting ,copper,PVC board,stone,MDF board ,PCB board etc.


Technical parameters:

NO.	Description	Parameter
1	X,Y,Z Working Area	1200*1200*120mm
2	Table Size	1860*1650mm
3	X,Y,Z Traveling Positioning AccuraIT	±0.03/300mm
4	X,Y,Z repositioning Positioning AccuraIT	±0.02mm
5	Table Surface	T-slot Extrusions
6	Frame	Welding steed
7	X, Z Structure	Ball Screw
8	Y Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. power Consumption	0.8Kw
10	Max. Rapid Travel Rate	8000mm/min
11	Max. Working Speed	12000mm/min
12	Spindle Power Motor	1.5Kw / 2.2kw / 3KW
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper system
15	Working Voltage	AC220V/50/60Hz
16	Command Language	G code
17	Operating System	DSP System
		(Option:Mach3 PC Software)
18	Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER16
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 software, Ucancam software,
		(Option: Artcam software)
23	Running Environment	Temperature: 0°C~45°C
		Relative humidity: 30%~75%
24	Packing Size	2210 *1850 * 1585mm
25	Net Weight	180KG
26	Gross Weight	272KG

Machine Parts :

Packing
All machine packed with Membrane firstly to avoid warm sea weather . Then packed with wood box to protect the machine . Finally at the top and bottom of wood box , add stainless steel pipe to make mchine more safe .
Certification :
The machine with CE And FDA , so it is very easy for European and USA customer to clearance customs .
