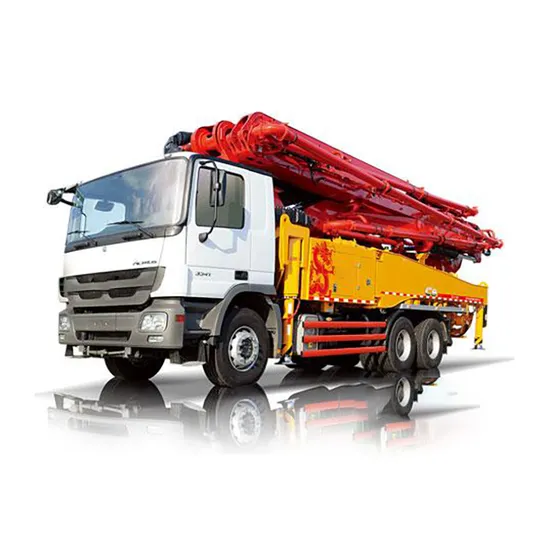

47m Truck Mounted Concrete Pump for High Building Concrete Pumping Work

Product Description

47m truck mounted concrete pump for high building concrete pumping work
Energy-saving Technology
When system pressure reaches 12Mpa:No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%.
Anti Overswing Technology
To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%.
Longer Life Time Wearing Parts
Delivery pipe
Discharge port/transition bushing
Concrete piston
Wear plate/cutting ring
Delivery cylinder
Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Safety Protection Technology
Overload protection for boom cylinders
Agitator safety switch off
Boom interference preventing technology
SYM5340THB 470C-10
Length: 12380mm
Width: 2550mm
Height: 4000mm
Empty Weight: 34000kg
Vertical Reach: 47m
Horizontal Reach: 42m
Reach Depth: 29.3m
Output: 200 / 137m³/h
Pressure: 8.3 / 12MPa
Chassis Model: SYM5350THB1

---
