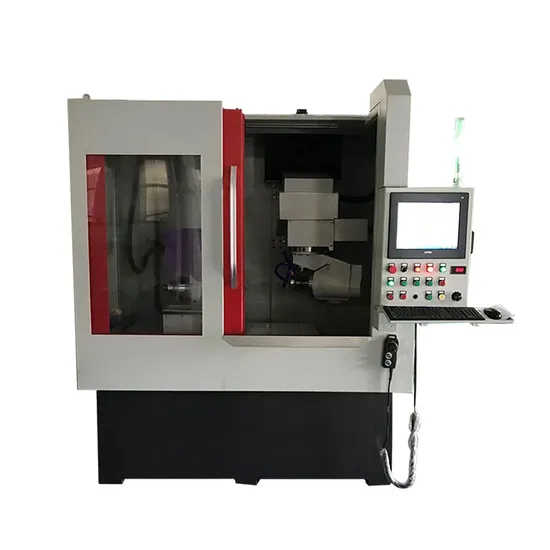

CNC 5-AXIS TOOL GRINDER WITH HIGH SPEED HIGH ACCURACY GRINDING MACHINE

Product Description

Product Description
Features and Application:
The machine according to user requirements for the design of practical use, reasonable structure, reliable, strong rigidity, high precision. The unique modular design makes more convenient debugging tool, strong operation. Selection of foreign high-end systems and software, Widely used in ball cutter, milling cutter, reamer, drill, Department of orthopedics, types of medical equipment, precision gear and all kinds of precision machinery parts and components.
Specification:

Grinding range
Max length of tools	200mm
Collect Size	4-20mm
Grinding wheel spindle and motor
Spindle speed	1000-12000rpm
Spindle motor	9kw
Grinding wheel shaft diameter	φ20mm
Grinding wheel diameter	φ150mm
Workpiece spindle
Spindle inner cone	BT50
Pneumatic clamping Load/The mini.Pressure	6kg/cm²/80psi
Mini.Dividing Precision	0.001°
X/Y/Z axis travel
working stroke(X.Y.Z)	400x300x300mm
Positioning accuracy	0.006mm
Re-Positioning accuracy	0.005mm
Raoid feed speed	6m/min
Rotation angle of C-axis	270°
Rotation angle of A-axis	360°
Servo for axis
Servo motor(X/Y/Z axis)	1.3kw
Servo motor(A/C axis)	0.85kw
Machine
Machine weight	5000kg
Packing size	2400x2400x2500mm

Standard Accessories:	Optional Accessories:
Air conditioner	Reverse-washing filter
Working light	Oil mist collector(eletrostatic)
The central control automatic oil lubrication device	Grinder oil temperature freezer
Grinding wheel flange
Basic block and level adjustment screw
Standard tools and tool box
Pneumatic clamping cutter holder
Collect chuck

Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
