Factory Direct Electric 6-51mm Portable Hydraulic Rubber Pipe Fitting Press Tool 1/4-2 Inch Wire Rope Swaging Machine Hydraulic Hose Crimper Crimping Machine

Product Description

Product Description

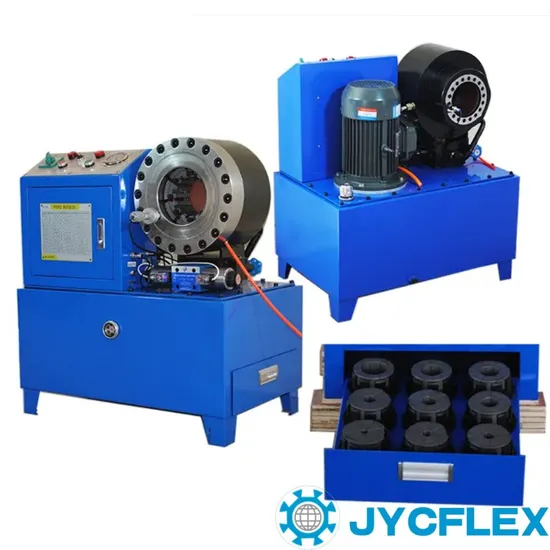

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Production name	hose crimping machine	Machine model	JYC-E51
Machine type	hydraulic crimping tool	Application	crimping hose
Crimping range	6-51mm(1/4--2 inch)	System pressure	31.5Mpa
Crimping force	3200kN	Operation mode	electrical
Dies set	13 sets	Die length	75mm
Dimension	650*470*620mm	Weight	240KG
Voltage	220V/380V	Power	3KW/4KW
Rated Flow	10ml/r	Prodection Class	IP54

Detailed Photos
Crimp
cylinder
--
DX68 crimping cylinder design,max opening 116 mm,built-in ring cylinder,could crimp hose fitting up to 2 inch (51 mm) 4 wire layers.Micrometer
--
Used in conjunction with the molds,esure that 10 sets dies can crimp all kinds hose fittings within range 1/4-2" (6-51 mm)Dies
locker
--
The dies locker installed 9 dies holders could put aii dies in,ensure the dies safety during the shipping and convenient for your pickup.Foot
pedal
--
We install foot pedal for each machine,could control the machine by foot,then free your hands and improve work efficiency.Control
Panel--
The machine has three operation ways,automatic,button or foot pedal.Spares
--
We packing 1 set spares for each machine,used for replace parts and maintain the machine,convenient for your work in the future.
Hydraulic hose crimping machine Application
E51 hose crimping machine is ideal for crimping 51mm 4spiral hose.
Digital touch screen operation panel, simple operation and high accuracy.
With large working stroke, even elbow fitting can be crimped.Finn power style hose crimper.
All parts are imported from famous brand,durable operating performance.
With quick change tool, that will definately release your hands and imporve your working effieiceny.
With dies rack, dies could be kept and picked up or equipped very quickly.Company Profile
-Our factory has 20 years of production experience and 8 years experience of export.
-In the long term foreign trade business practice,we have a good business reputation,smooth public relations,experienced personnel and rich information channels.
Production Show
Certifications
CE certificate .Verified by world-leading inspection company TUV Rheinland.
Customers and Reviews
Packaging & Shipping
FAQ
Q1 : Are you factory ?A1: Yes, We are factory direct sales, can also provide CE certificate.
Q2:Do you have the machine in stock?A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.
Q3:Could you customize the voltage?A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.
Q4: How about the warranty?A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work wrong; If your machine cann''t work,please contact us,we will help you fix it or send you some spares.Q5 : Could you customize dies molds?A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the dies pattern or dies number regarding your requirement.Q6:Does the machine operate easily?A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for each machine,we also could provide the operate video.Q7:Can you produce product with my own brand?A7. Yes, it''s available except famous brand which are not allowed.
Q8:Could you customize color for me?A8: Yes,we can customize the color regarding your requirement.

---
