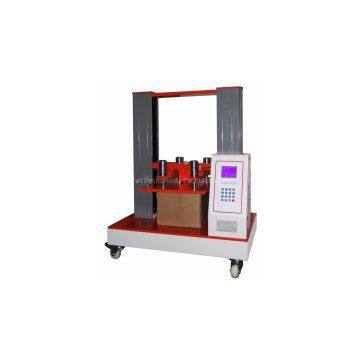

ISO 12048 box compressive strength tester

Product Details

Product Description

Product Description
ISO 12048 box compressive strength tester is for the compression strength, crushing force and stacking ability of medium and small size packaging like corrugated carton.
ISO 12048 box compressive strength tester technical data
Pressure range: 0-10KN
Force resolution: 0.1N,
Display error: ±2%
Display variation: ≤2%
Back to zero error: ±0.2%FS
Deformation measurement accuracy: ±1mm
Compressing speed adjustable range: 5mm/min~90mm/min
Compressing speed relative error: ±3%(within 5~90mm/min)
Standard compressing speed: 12mm/min
Stacking test speed: 5mm/min
Lower platen stroke: 800mm
Test space: 400mm(L)*600mm(W)*600mm(H)(other space available)
Upper and lower platen parallelismdegree: ≤1mm
Dimension: 850mm(L)*600mm(W)*1100mm(H)(varies with different test space)

---
