Hb-B Series Transformer Curing Oven/Transformer Oven/Industrial Oven/Transformer Drying Oven

Product Description

Product Introduction

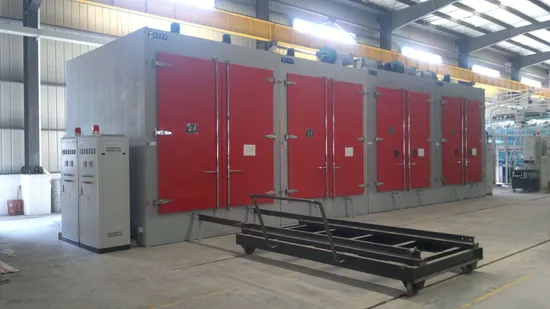

HB-B series transformer curing oven is a special curing oven independently developed and designed by our company according to the working principle of curing ovens and in combination with our rich experience in the transformer industry. It is featured by good temperature uniformity, excellent thermal insulation performance and good-looking. The product is widely used for curing after coil epoxy casting, vacuum lacquer dipping and winding of dry transformers; pre-drying of molds and coils; drying of the oil-immersed transformer body; etc.
Performance
1. Two sets of over-temperature alarm systems ensure operation safety of the curing oven.
2. A reasonable hot air circulation mode can be chosen according to the product placement, so as to achieve more uniform temperature in the oven and better curing (drying) effects.
3. It features advanced electrical control, intelligent program temperature controllers, PID parameter self-tuning, solid-state relay power regulation, easy operation and reliable performance. Any curing curve can be set according to different processes.
4. The low thermal conductivity high-quality aluminum silicate wool insulation and unique insulation wool filling method ensure the insulation performance of the curing oven.
5. The accessories of standard configuration of this series curing oven include: manual cart, and rails inside and outside the oven.
6. Optional accessories include: automatic cart, inside-oven low-voltage lighting and observation window, temperature recorder, computer centralized-distributed control system.
Main technical parameters of some common HB-B series transformer curing ovens

Parameter	HB-1	HB-2	HB-3	HB-4	HB-5	HB-6
Dimension of working chamber mm(width×depth×height)	1400×1550×1400	2000×2000×2000	2000×3000×2000	2000×3500×2000	2000×4000×2000	3000×5000×3000
Operating temperature(ºC)	Room temperature-200	Room temperature-200	Room temperature-200	Room temperature-200	Room temperature-200	Room temperature-200
Operating voltage/frequency(V/ Hz)	3-380/50	3-380/50	3-380/50	3-380/50	3-380/50	3-380/50
Heating power(kw)	24	45	60	66	72	108
Temperature uniformity(%)	±2.5	±2.5	±2.5	±2.5	±2.5	±2.5
Temperature fluctuation(ºC)	±1	±1	±1	±1	±1	±1
Weight(T)	1.5	3	4	4.5	6	8
Note: The product is non-standard, and can be designed and manufactured in accordance with the user's requirements.

Company profile
Founded in 2007, Ningbo Zhisheng Oven Co., Ltd is a large-scale enterprise specializing in the R&D and production and sales of non-standard automation equipment. The main products of the company include large ovens, curing ovens, tunnel furnaces, painting machines, ablation machines, non-standard automation assembly lines, industrial ovens, etc.
The company can produce various types of heating and curing equipment which can use electricity, steam, fuel oil, mixed fuel or other materials as heating media, and can design and manufacture equipment according to customers′ requirements.
The products are widely used in many industries including the electrical industry (such as motors, transformers, mutual inductors, and high-voltage switches); The friction & sealing material industry (such as brake pads, clutches); The fluoroplastics industry (such as sealing elements, PTFE composite sheets, PTFE products); The electronic & capacitor industry (such as electronics, household appliances); And the new material industry. The company has an annual output of more than 1, 200 units of equipment. Nowadays, more than 6, 000 units of equipment of the company are running in more than 4, 000 users in various industries across the country. The products have also been sold overseas to Europe, America, Southeast Asia and other regions.
The company takes "satisfying customers and serving society" as its mission, always adheres to the business philosophy of "sustainable development", strictly implements the ISO9001 quality management system, and constantly pursues innovation.
After years of exploration and experience, the company has accumulated rich experience in the industry and laid a good foundation for development. Now our company has strong strength of product research and development and high-quality staff, and enjoys the reputation of famous brand. Our company has obtained many national utility model patents. It is constantly providing the market with high-tech, sophisticated, top and new products.
Our customers
Our patent, CE, ISO certificates and other certificates
FAQ
1)Are you a manufacturer or a trading company?
We are a manufacturer integrating design, manufacturing, sales, and import & export businesses
2) Can we attach our logo on the product?
Yes, we can add your logo to the product.
For more questions, please don't hesitate to contact us.

---
