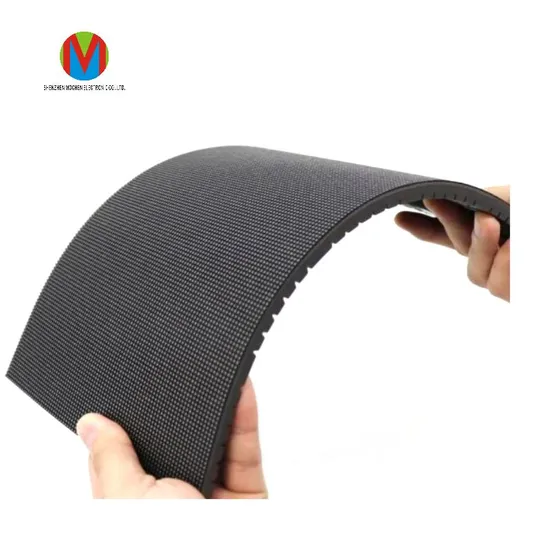

| MCLED HD P1.5 P1.8 P2 P2.5 Soft GOB LED Module | ||
| 1 | HD small pixel LED display | P1.25 / P1.5 / P1.6/ P1.8/ P1.9 |
| 2 | Hot rental LED display | P2.604 /P2.976 /P3.91 |
| 3 | Outdoor fixed LED display | P2.5 /P3 / P4/P5 /P6 /P8 /P10 /P16 /P20 |
| 4 | LED Control System | Nova Star / LINSN /Colorlight /Huidu |
| 5 | LED | Nation Star led lamp / Epistar chip from Taiwan |
| 6 | IC | 2037 /2038s/ 2153 /2163 /6373 /16380 |
| 7 | Power supply | Meanwell / G-energy |
| 8 | Cabinet kind | Iron /Aluminum /Die-casting /Fiber Aluminum |
| 1 | Pixel Pitch | P1.86 mm |
| 2 | Module Size | 320*160mm |
| 3 | Pixel density | 289,050 dots/m2 |
| 4 | Color temperature | 6000K--8000K |
| 5 | Viewing angle | H:140;V:140 |
| 6 | Dead LED lamp rate | ≤0.1‰ |
| 7 | Non-Flatness | <0.2mm |
| 8 | Module interval | <0.2mm |
| 9 | Packaging Gross Weight(KG) | 0.35 kg /pcs (Estimated data) |
| 10 | Caton Packaging dimension | 60cm*35cm*39cm (36 pcs in one carton ) |
| 11 | Max power/m2 | 800 W/m2 |
| 12 | Brightness adjusted | 256 grade by auto-optic/color &8 grade by hand |
| 13 | Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| 14 | Life-span | ≥1 00,000 hours |
| 15 | MTBF | 5,000 hours |
| 16 | Frame frequency | 50/ 60 Hz |
| 17 | Refresh rate | ≥3,840 Hz |
| 18 | Signal Input(with video processor) | HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc. |
| 19 | Control Distance | 120 m (no repeating); Optical fiber transmission: 0.5km- 10km |
| 20 | Systems Operating Platform | Windows XP, Win 7, Win8, Win8.1, Win10 |
| A | 96 Hours Serious Testing Time |
| B | 72 Hours Display Testing Time |
| C | 24 Hours Module Testing Time |
| D | China time 9:00 AM-23:00 PM After-sales online Service |
| E | 2 Hours LED Inquiry Response Time |
| F | 10+ years Professional LED display factory |
| G | 10+ years Excellent Domestic Big Government LED Designer |
| H | 10+ years Expanding International Trade Experience |
Question 1: How can I trust your MZCLED factory ? |
| Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 10+ years . In the past years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it . Welcome to try our LED sample quality . We do have100% confidence in our LED product . |
Quesiton 2: If I need led very urgently ,how fast can you finish the goods ? |
| Answer:How fast you want ?Three days ?One week ? Definite shipping date ? We produce LED everyday .We have some led modules in stock . Put the most urgent and important order at the first place . You are important to us .Surely to establish first-time good relationship . We do must finish it at FAST ROCKET TIME. |
Q3: Is it easy to install this led display ? |
| Answer : If you are new to LED ,we will help you to know led from 0 to Professional . We have installation manual book and professional engineering team to guide you . To help you better understand LED is to make us get your earlier trust . If you knew LED before,we can learn from each other. We could be Future Shaking-hands Partners . Our engineering team remote help is ready for you at China time 9:00 AM- 23:00 PM . |
