Long Distance 902-928MHz UHF RFID 125kHz RFID Card Reader with Metal Case Waterproof 0-15m to Read UHF RFID Reader

Product Description

Long Distance 902-928MHz UHF RFID 125khz RFID Card Reader with Metal Case Waterproof 0-15M to Read UHF RFID Reader
Product Description:
RFID UHF 12m long range card reader can be compatible with mult-protocol, integrated design,multi-tag reading, anti-collision, suitable for logistic and warehouse management, car parking system, access control, time attendance, bus transportation etc lots of field, can read and write , fast speed read and recognized.
This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B.
It is an industry grade product for harsh environment, IP-65 protection case for water-proof, easy to install.
Mainly application as follows:
1. Parking management: Long range intelligent parking management and automatic charge without stop the car
2. Production line management: Goods identification for production flow
3. Auto Access control: Long range access control management for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition
6. Automatic weighing and data capture.
Features: • Support ISO18000-6C and ISO18000-6B protocol.
• RS232.RS485, Wiegand26/34, RJ45 communication interface support.
• Advanced tag collision processing algorithm, High literacy rate.
• High-Speed write data.
Technical Specification:

Product Parameter	Description
Protocol	ISO18000-6B, ISO18000-6C (EPC GEN2)
Frequency Range	Standard ISM 902~928MHz or ISM 865~868MHz,other
Operation Mode	FHSS or fixed frequency(set by software)
RF Power	0~30dBm,software adjustable
Reading Speed	Software Programmable,Average Reading per 64Bits: <6ms
Reading Mode	Timing or Touch, Software Programmable
Data Ports	Standard: Wiegand26/34, RS485, RS232; Software Programmable
	Optional: TCP/IP ( RJ45)
Data Input Port	Trigger input one team
Reading Range	Max 12 m
Reading Clue	Buzzer
Antenna	Built-in line polarization Antenna, Gain:12dbi
Power Supply	DC+9V (Power Adapter)
Dimension	440mm×440mm×50mm
Weight	4.5Kg
Operation Temp	-20 Degree~+80 Degree

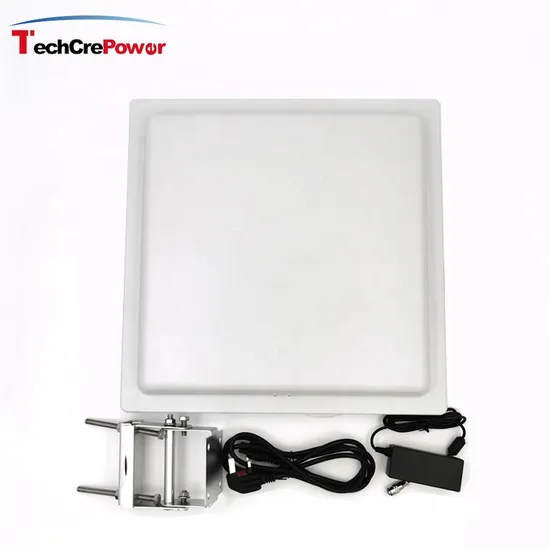

Product Display:
