Paper Cup Machine/ Paper Cup Forming Machine

Product Description

Introduction

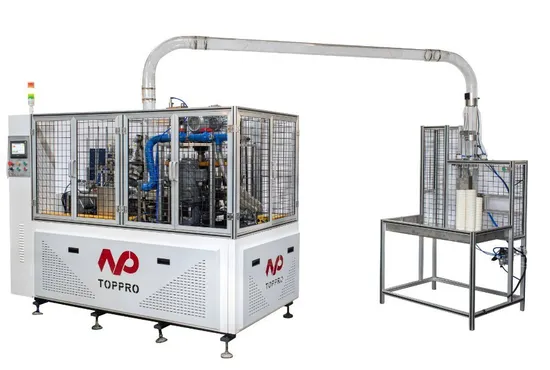

LF-90 MID-speed paper cup forming machine is a multi station high-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.

Machine details

Name	Middle Speed Paper Cup Machine
HS Code	8441309000
Model	LF-90
FOB NINGBO	15000usd/set
The machine includes: Finished cup Collect System
Paper cup Size	A=70mm-95mm	B=48mm-63mm
	C=46mm-100mm	D=5mm-10mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	90-100pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	190-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.5-0.8Mpa, 0.4m3/min User should buy Air Compressor
General power	9kw
Net weight	2300kgs
Measurement (mm)	2300*1250*1800
Cup Side Sealing	Ultrasonic sealing
We can customize machine and mold according to customer's requirement.

Leading technology:
1. Adopt open CAM and gear transmission system. Machine run stably under high speed operation.
2. Using hot air heating system, to keep cups no leaking under high speed.
3. The parts are all made of standardized production, strong commonality, swap performance is good, easy to maintenance.
4. The automatic lubrication system, closed, can ensure the machine long time continuous high-speed operation.
5. Intelligent design, PLC automatic control, automatic fault alarm, count. Testing, and stop action.
6. The machine is a compact paper cup machine helping clients to save 60% shipment cost.
After-sale and warranty
Our factory
If you are interested,
Pls do not hesitate to contact me!
Contact person: Joy liang
waiting for your coming~

---
