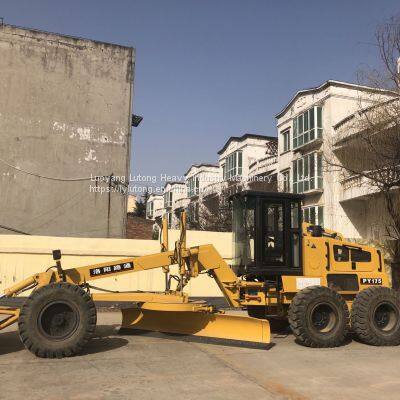

Lutong 180 horsepower self-propelled grader Made in China

Product Details

Product Details

Product Description

Product Description
Tip:
Due to market price fluctuations, the above product prices and attributes are for reference only
Please contact customer service for specific details,
Sincerely look forward to working with you! !
Contact number: +8617503799066
Email: lutongjason@gmail.com
WeChat: 17503799066
Facebook: Luoyang Lutong
Twitter:
TikTok: lutongjason
Official website:
MAIN FEATURES
01Power configuration is Cummins or Shanghai Diese Engine inter-cooling supercharged diesel endine with b power and reliable performance.
02Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
03Driving axle with integrated free-wheel anti-slip differential and b roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
04Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
05Flexible hydraulic control system with two sets of HUSCO five way control valve, lmported hydraulic equalizing valve for the bladelifting,Patent hydraulically-operated pin drawing device is designed firstly in board.
06Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.
07Service braking system of,caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
08Hydraulically operated with with entire instrumental monitoring system, Free-maintenance OPTIMA.
09It is optional for front bulldozing plate and rear ripper.
MAIN TECHNICAL PARAMETER
MODEL
PY180C
Operating mass
Kg
16000
Front axle load
Kg
5150
Rear axle load
Kg
10850
Max forward speed
Km/h
36/38.2
Max
backward speed
Km/h
25/24.5
Speed gear number

F6/R3
Turning radius
mm
7800
Hydraulic
system pressure
Mpa
18
Blade lengt
× height
mm
3965×610
Front wheel track
mm
2150
Rear wheel track
mm
2255
Wheelbase
mm
5647
Engine model
mm
6BTA5.9/SC8D180
Engine power
kW
132/140
Overall dimensions
mm
8605×2695×3420
