Pilot Automatic Vacuum Freeze Dryer for Food and Medicine 6kg/24h

Product Description

General Introduction :

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After freeze drying process, a long term preservation for material is much easier. They can be restored to original state and maintain their chemical and biological characteristics after being watered. The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture under vacuum state.

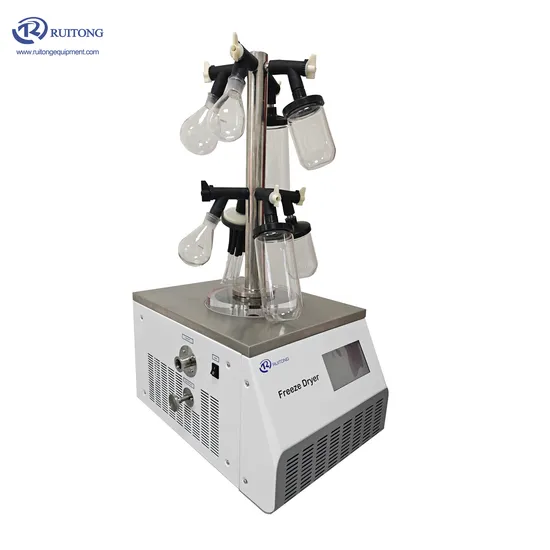

RTFD-10C manifold type freeze dryer is used for freeze drying experiment in laboratory.
It is bench top equipment, suitable for drying products in bulk and in flask.
Main Features:
Control panel display in English Vacuum can be displayed in Pa or mbar Condenser with uniform and good ice capture function Acrylic drying Chamber is safe and easy to view sample status Small and compact structure , with easy and convenient operation Vacuum pump with high pumping speed , to reach good final vacuum Big opening condenser with external coiling tubes, has pre-freezing function Color LCD touch screen displays running time, display sample temperature, condenser temperature , Vacuum degree, and save data automatically Display sample temperature curve, condenser temperature curve and vacuum curve CFC-free refrigerant, international famous brand compressor, low noise,good efficiency Condenser, trays, drying shelf and pre-freezing shelf are made of stainless steel 304, anti-corrosion Stainless steel air inlet valve (drain valve) is safe, anti-corrosion , no leak With USB port to output freeze drying data, open and view data in Excel format Technical parameters

Freeze drying area	0.12m2	0.18m2 (optional )	0.24m2 (optional )
Ice condenser capacity	3-4 kg /24h
Condenser temperature	-50ºC (-80 ºC optional )
Final vacuum	< 10 Pa
Tray	Ф200mm , 4 layers Spacing 70mm	Ф200mm , 6 layers Spacing 50mm	Ф200mm , 8 layers Spacing 35mm
Bulk capacity	1.2L, 10mm thickness	1.8L, 10mm thickness	2.4L, 10mm thickness
Vial capacity Φ12mm	820 pcs
Vial capacity Φ16mm	460 pcs
Vial capacity Φ22mm	244 pcs
Condenser size	Ф215mm, 140mm deep
Drying chamber size	Ф260×460mm
Vacuum Pump Flow Rate	2 L/S, 7.2 m3/h
Defrosting	Off Cycle Defrosting
Manifold	with 8 ports
Flask	Round bottom flask: 1000ml,500ml ,250ml ,100ml,50ml Wide-neck flask: 600ml,1200ml
Cooling	Air cooling, ambient temperature≤25ºC
Voltage	220V/50 Hz, 110V/60Hz, 120V/60Hz
Power	970W (-50ºC) 1400W (-80ºC)
Dimension	610x 450 x (370+460)mm (-50ºC) 850 x 680x (400+460)mm (-80ºC)
weight	75 kg (-50ºC) 135kg (-80ºC)

Options :
Vacuum control valve
Intake backfilling filter
Air inlet filter for pump
Nitrogen inflation valve
Eutectic point test device
Electricity heating defrosting
Exhaust filter/oil mist filter for pump
Cascade refrigeration ,condenser temperature -80ºC
Check valve for pump to prevent oil sucked into chamber
Ley bold pump or other international brand vacuum pump
RS232 and software: Check and keep freeze drying data , control freeze dryer through computer
Special requirements can be customized
Package: strong plywood case, suitable for shipping by sea , by air

The RTFD-10 series has the following standard configurations


Options

Vacuum control valve
Intake backfilling filter
Air inlet filter for pump
Nitrogen inflation valve
Eutectic point test device
Electricity heating defrosting
Exhaust filter/oil mist filter for pump
Cascade refrigeration ,condenser temperature -80ºC
Check valve for pump to prevent oil sucked into chamber
Ley bold pump or other international brand vacuum pump
RS232 and software: Check and keep freeze drying data , control freeze dryer through computer
Special requirements can be customized Vacuum Pump


How to choose a freeze dryer

Package: strong plywood case, suitable for shipping by sea , by air
