US$4,600.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Precision
Normal Precision
Certification
CE, ISO 9001
Product Name
Square Column Drilling Machine Z5140 Z5150 High Pr
Headstock Travel(Manual)
200mm
Transport Package
Plywood Case
Packaging & Delivery
Package Size
109.00cm * 90.00cm * 246.00cm
Package Gross Weight
1300.000kg
Product Description

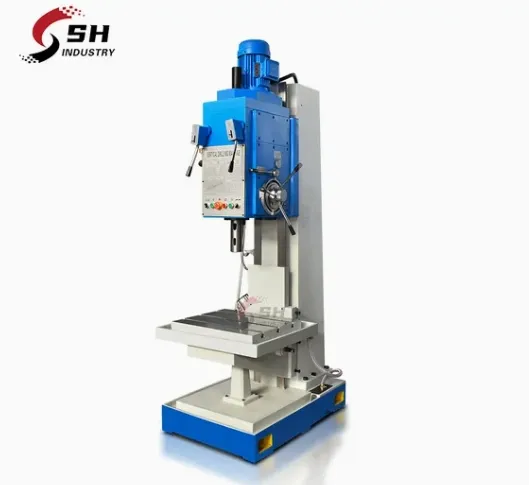

Square Column Drilling Machine Z5140 Z5150 High Precision Vertical Drill Machine
Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:
| Specifications | Z5140 | Z5150 |
| Max drilling dia | 40mm | 50mm |
| Spindle taper | MT4 | MT5 |
| Spindle stroke | 250mm | 250mm |
| Headstock travel(manual) | 200mm | 200mm |
| Spindle speeds | 31.5-1400r/min 12 steps | 31.5-1400r/min 12 steps |
| Feed range | 0.056-1.80mm/r 9 steps | 0.056-1.80mm/r 9 steps |
| Table size | 560x480mm | 560x480mm |
| Table vertical travel | 300mm | 300mm |
| Max.distance spindle nose to table | 750mm | 750mm |
| Main motor power | 3kw | 3kw |
| Overall dimension | 1090*905*2465mm | 1090*905*2465mm |
| N/W | 1300kg | 1350kg |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
>>
