US$6,000.00-27,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
JCT1530L 4 axis
Spindle Number
Single-Spindle
Certification
CE, ISO, BV, TUV
Name
4 Axis CNC Router Engraver Machine for Large Human
Function
Produce 2D,3D Decoration Products,Big 3D Sculpture
Xyz Working Size
1500*3000*500mm(Customized)
Rotary Working Size
1000mm Diameter, 2500mm Length(Customized)
Table Surface
Aluminium T-Slot with Clamps
Pindle Power
9kw Air Cooling Spindle
Working Mode
Japan Yaskawa Servo Motor and Driver
Working Voltage
3 Phase AC380V /220V
Operating System
4 Axis Weihong Control System
Transport Package
Wooden Case Packages
Specification
working size diameter 1000mm, length 2500mm
Production Capacity
800sets/Year
Product Description
We are factory professional produce 3 axis,4 axis,5 axis cnc machines,cnc laser,3D scanner etc.
Including all kinds of 2d,3d flat decoration products and rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,plastic,PVC,composite boards,acrylic,glass,aluminum etc.
Welcome for your inquiry and visit our factory!

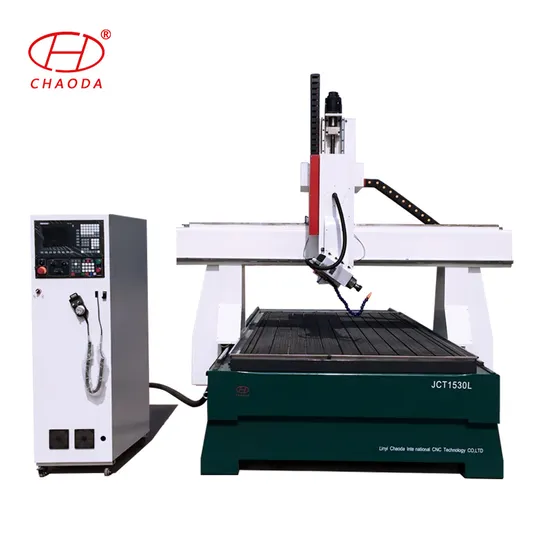

4 axis cnc router engraver machine for large human body
Application
1.movable table,it can processing both flat surfaces and 3d cylinders,sculptures,statues etc.
2.suitable for Wood,Foam,Composite boards,PVC,plastics,Acrylic,Organic glass,Aluminum,copper etc.
Model No.: JCT1530L 4 axis
Specification
| X,Y,Z,working area | 1500*3000*500mm(customized) |
| rotary working size | 1000mm diameter,2500mm length(customized) |
| Lathe bed structure | T-extrusion,Thick Steel frame |
| Table surface | Aluminium T-slot with clamps |
| X structure | Rack and pinion, HIWIN linear square rail |
| Y structure | Rack and pinion, HIWIN linear square rail |
| Z structure | Ball screw, HIWIN linear square rail |
| Resolution | ±0.02mm |
| Reposition accuracy | ±0.05mm |
| Max. rapid | 0-60000mm/min |
| Max. working speed | 0-30000mm/min |
| Spindle power | 9kw air cooling ATC spindle |
| Tool magazine | Linear type auto tool changer system,8 tool magazine |
| Spindle speed | 0-24000RPM |
| Working mode | Japan YASKAWA servo motor and driver |
| Working voltage | 3 phase AC380V /220V |
| Command code | G code(*uoo,*nc,*mmg, *plt) |
| Operating system | 4 axis WEIHONG control system( optional syntec control system ) |
| Collet | ER32 |
| Software | PowerMill |
| Running circumustance | Temperature: 0°C~45°C
relative humidity: 30%~75% |
Sample pictures:
Other related machines for reference
1).Hot wire foam cutting machine,cut foam shapes,moulds etc
2).3d scanner,scan real objects fast get 3d design
Welcome for your inquiry!
Will providing you most suitable machine solutions!
>>
