Basic Info.
Certification
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Types of Suspension Systems
Leaf Spring Suspension
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Compartment
3-Compartment
Discharging Valve
API Valve
Transport Package
Spray Wax and Tarpaulin
Specification
11800*2500*3750
Product Description
Specification List

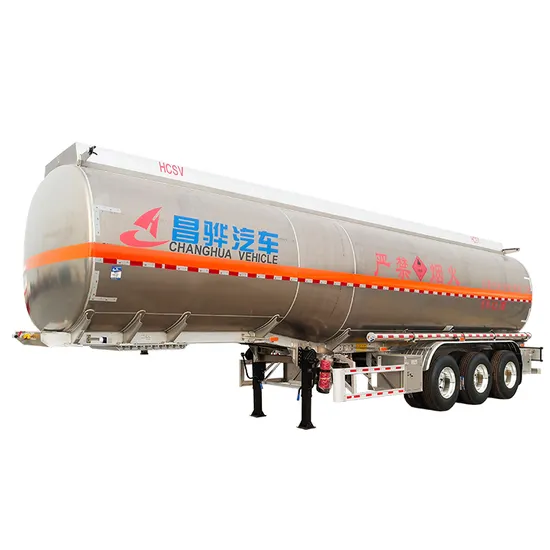

Tank trailer specification |
1 | Medium | Petrol/diesel and other fuel oil |
2 | Overall demension | 11800*2500*3500mm(approx) |
3 | Curb weight | 7500kg(approx) |
4 | The height of fifth wheel | 1350mm |
5 | Axle | 13T HCSV Brand with ABS and automatic slack adjusters & 3 units |
6 | Tire | 12R22.5 & 12 units,Triangle Brand |
7 | Rim | 9.0 & 1 units, high strength iron |
8 | King pin | 50#(2") or 90# (3.5") standard bolt type |
9 | Landing gear | Capacity & 28T, Fuwa Brand |
10 | Suspension | Leaf spring,13mm*90mm*10pcs |
Tank body specification |
11 | Tank shape | Square round and goose neck design |
12 | Tank capacity | 46,000 liters (valid volume) + 5%(ullage) |
13 | Tank meterial | AL5182 |
14 | Tank designed thickness
| End cover | 7 mm |
Tank body | 5.5 mm |
Baffle | 5.5 mm |
Main parts specification |
15 | Beam | Heavy duty and extra durability designed T-type beam,opting for high tensile steel Q345,welded by automatic submerged-Arc processes |
16 | Compartment | 4 units, 11,250L+11,250L+11,250L+11,250L for each compartment |
17 | Manhole cover | Aluminum & 4 units,Jialong Brand |
18 | Bottom valve | 4" aluminum & 4 units,Jialong Brand |
19 | Discharging valve | 4" API aluminum & 4 units,Jialong Brand |
20 | Discharging hosebox
| 6 meters & 2 units |
21 | Discharging hose | 5.7 meters & 2 units |
22 | Handrail | 2 units on the top |
23 | Walkway platform | Aluminum, On the top with anti-slip punched design |
24 | Ladder | 1 unit, on the rear or front |
25 | Breath valve | Aluminum & 4 units |
26 | Spare tire Carrier | 1 unit. |
27 | Mud guard plate | Integrated design plate |
28 | Reverse buzzer | 1 unit. |
29 | Electric system | 24V, 7-pin socket |
30 | Lights | LED lights with protection |
31 | Painting | Aluminum original color without painting or painting as customer's requirements |
32 | Delivery | Spray wax before departure and tarpaulin for protection |
Other equipment |
1.Single tool box, aluminum, largest as possible as we can 2.Single valve box, aluminum, largest as possible as we can 3.Single side loading and unloading on left 4.2 sets of 8KG fire extinguisher and boxes 5.1set of anti-static grounding tape 6.All of other necessary tools |
Drawings
Accessory Details
Packaging & Shipping
Factory & Customers
Certifications
FAQ
Company Profile
Hebei Changhua Special Vehicle Co.,Ltd(HCSV)is the top 3 trailer factory and one of the earliest special vehicle manufacturers in China.
Our company was founded in 1994 and is located in Huanghua City, Hebei Province. The total investment is more than USD 120 million, covering an area of 467,000 square meters, with an annual output value of more than USD 400 million. We have more than 1,600 employees and the annual production capacity of special vehicles can reach 28,000 units.
In 2001, our company took the lead in passing the ISO9001:2000 quality management system certificate and was certified by 3C in 2003. We have more than 258 vehicle models announced by China's Ministry of Industry and Information Technology and obtain many international certificates such as CE, ADR,ASME and so on. In 2006, HCSV was awarded the title of "Famous Trademark" and was recognized as a "National High-tech Enterprise".
Our products include:
★Aluminum/steel/stainless steel tank semi-trailer and truck tanker etc.
★Fuel/edible oil tank,chemical tank and insulation tank semi-trailer etc.
★Bulk cement/powder and particle material V-type tank semi-trailer etc.
★Sidewall/warehouse/fence/van type cargo transport semi-trailer etc.
★Flat bed/low bed/skeleton type container transport semi-trailer etc.
★Cryogenic (LNG/LOX/LN/LAR/CO2) vessel and LPG tank semi-trailer etc.
★Container frame tank,storage tank and other special trailers etc.
We have 16 product lines with modern equipment and technology.
★28 units per day of carbon steel and stainless steel tanker production lines
★30 units per day of aluminium alloy tanker production lines
★8 units per day of pressure vessel production lines
★12 units per day of bulk powder tanker production lines
★20 units per day of cargo trailer production lines
★120 units per day of accessory production lines
With 30 years of rapid and stable development, we have a strong R&D and production capacity, and we have cooperated with many large energy or logistics companies at home and abroad, such as China National Petroleum Corporation;INDOX Ltd,GREENVILL Inc. in Europe;OIL ENERGY, SAPE, NOON AFRICA in Africa;NLC,SPEED,PACIFIC ENERGY,SUNOIL in Asia etc. Now, our company has become a group-based special vehicle manufacturing enterprise integrating R&D, production and sales with international influence.
Welcome to our company!
>>
