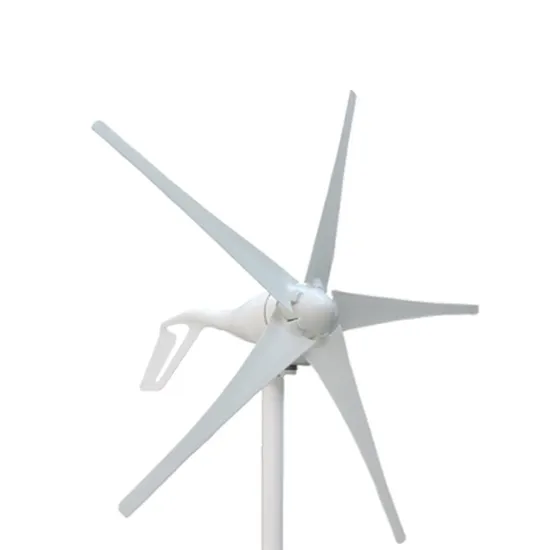

5 Blades Wind Turbine Generator Free Alternative Energy Windmill 12V 24V 500W Hybrid Controller

Product Description

Product Description
Product Features
1. High efficiency, more profit
This system has our patented Pitch-Controlled wind turbine, which can output 30% more electricity than normal wind turbine. Pitch-Controlled wind turbine has the following advantages,
1.1 Lower start up wind speed
Pitch controlled wind turbine blades have the best start up angle, can be started up with 2.5m/s wind speed. Best wind power availability when the wind speed is lower then rated wind speed.
1.2 Stable running when wind speed is higher than rated wind speed
When then wind speed is higher than rated wind speed, secondary regulation starts up to make sure system have a stable output power.
Lower start up wind speed, then increase the rotating speed, then have a stable output power with a higher wind speed to make sure there is a 30% more electricity output.
2. High performance On-Grid controller and inverter
After years research and practice, we have developed high performance On-Grid controller and inverter, which are more suitable with the Pitch-Controlled wind turbine. Each unit of the system can work perfectly, so the system could output more power, and has a longer service life.
3. Safety, steady, long service life.
3.1,Leading centrifugal pitch controlled technology world-wide.
Exactly regulation: Information input source of pitch controlled mechanism is wind rotor rotating speed. System regulation is more stable, reliable and quick response and so on. Softness regulation: Impact caused by wind speed becoming will be decreased through the pitch controlled mechanism. Regulation soft, failure rate low
Longer service life: System adopts mechanical part, floating connection, smaller fraction losses, less failure sources, better environment adaptability, Longer Service life.
3.2,ASP System (Automatic safety protection system)
ASP system, our patent product is unique protection system in China. It can control the wind turbine to run or stop by testing the environment wind speed and system working voltage. When the environment wind speed or system voltage is over the set value, it will shut up the wind turbine. When the wind speed is lower than 25m/s, it will release the brake system, wind turbine restart to work. ASP makes nobody guard come true.
4. Low Working Noise
Excellent permanent magnet power technology and aerodynamic characteristics of the blades, lower the noise level of the wind turbine. The noise level is less than 65dB.
5. Easy installation
5.1 Easy to installation without any heavy equipment likes crane, save installation cost.
5.2 Carry and installation are not limited by landform, especially for mountain area and island
5.3 Tilt-up tower, easy to install and maintenance. Product Parameters

Rated power	400W
Rated voltage	12v or 24v for option
Start up wind speed	2.5m/s
Rated wind speed	12m/s
Survival wind speed	55m/s
Blades material	Nylon fiber
Blades number	3 or 5
Wheel diameter	1.25m
Body material	Aluminum alloy
Top net weight	7.5kg
Generator	Three phase permanent magnet ac synchronous generator
Magnet material	NdFeB
Control system	Wind wheel yaw
Speed regulation	Automatically adjust windward direction
Working temperature	(-40°C) - (80°C)
Design life	20 years
Certification	CE, ISO14001, ISO

Packaging & Shipping

---
