Hot Sale PC 600*400 Calcium Carbonate Gypsum Limestone Quartz Graphite Calcite Feldspar Fluorite Powder Hammer Mill of China

Product Description

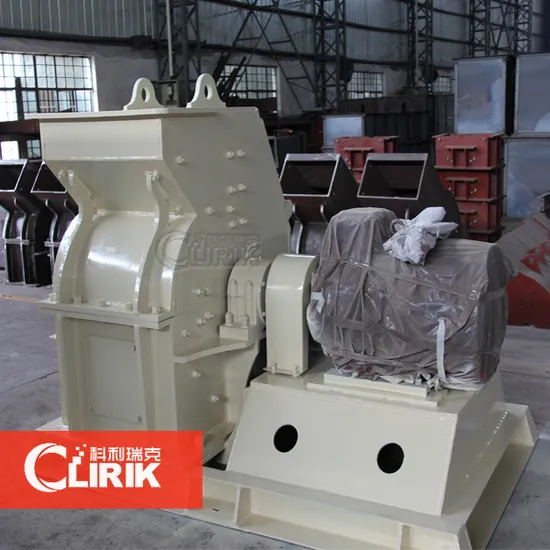

Hammer crusher description:
Capacity: 3-200t/h;
Finished size: 0-25mm;
Power: 11-132kw;
Model: PC300x400,PC400x600, PC800x600, PC1000x800, PC1200x1000 Parameter:

Type	PC400x300	PC600x400	PC800x600	PC1000x800	PC1200x1000
Rotor Diameter/mm	400	600	800	1000	1200
Rotor Width mm	300	400	600	800	1000
Rotor Speed r/min	1100	1000	960	980	650
Max feeding size mm	<100<>	<220<>	<350<>	<400<>	<400<>
Finished size mm	0-10	0-20	0-25	0-25	0-25
Capacity/ t/h	3-8	8-15	15-45	40-60	120-200
Power KW	11	18.5	45	75	110-132
Hammer Number/pieces	16	20	28	30	60
Weight/t	0.5	1.6	4	6.5	13.1
Dimension L*W*H/mm	855*795*860	1150*1095*1230	2360*1490*1415	3072*1720*2121	5000*2500*3100

<100<><100<><220<><350<><400<><400<><220<><350<><400<><400<><100<><220<><350<><400<><400<>Hammer crusher is engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.


Hammer crusher features&advantages: 1. High capacity and low power consumption;
2. Uniform particle size with high crushing and crushing ratio;
3. Simple structure; Easy operation
4. Low investment.
5. Perfect services.
Hammer crusher working principle:
Hammer crusher mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: upper part and lower part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out.
The rotors consist of turn plates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then thrown fiercely to the support iron for further crushing.
Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. To avoid the plugging of the crusher, the proportion of water for the crushing materials is no more than 20%. Hammer customer case
Hammer crusher Packing & Shipping
Packing: Conventional Packaging suitable for long distance transportation.
Shipping: 10-30 working days after recieving the deposit of the devices.
Othere Product Offered


Company information:
Our Company
Shanghai Clirik Machinery Co., Ltd. is located in Pudong New District, Shanghai, China, which is specialing in manufacturing grinding mills, Raymond mills, crushers and other associate accessories with decades experience. We have strong and professional technical and sale team. Customers' satisfaction is our final and forever pursuing.
Our Workshop
Our Exhibition
Our Certificate
FAQ:
1. What are advantages of your hammer crusher?
-The main advantage of our limestone hammer crusher over other kinds of mills is that you can grind a friable or crystalline material to 3mm average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your hammer crusher?
---We have passed CE&ISO9001:2008, and our limestone hammer crusher have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

---
